1998 Sabreline 36 AFT CABIN

Twin Caterpillar 3116 Diesels | 8kW Westerbeke Generator | Bow Thruster | Dual Helm Stations

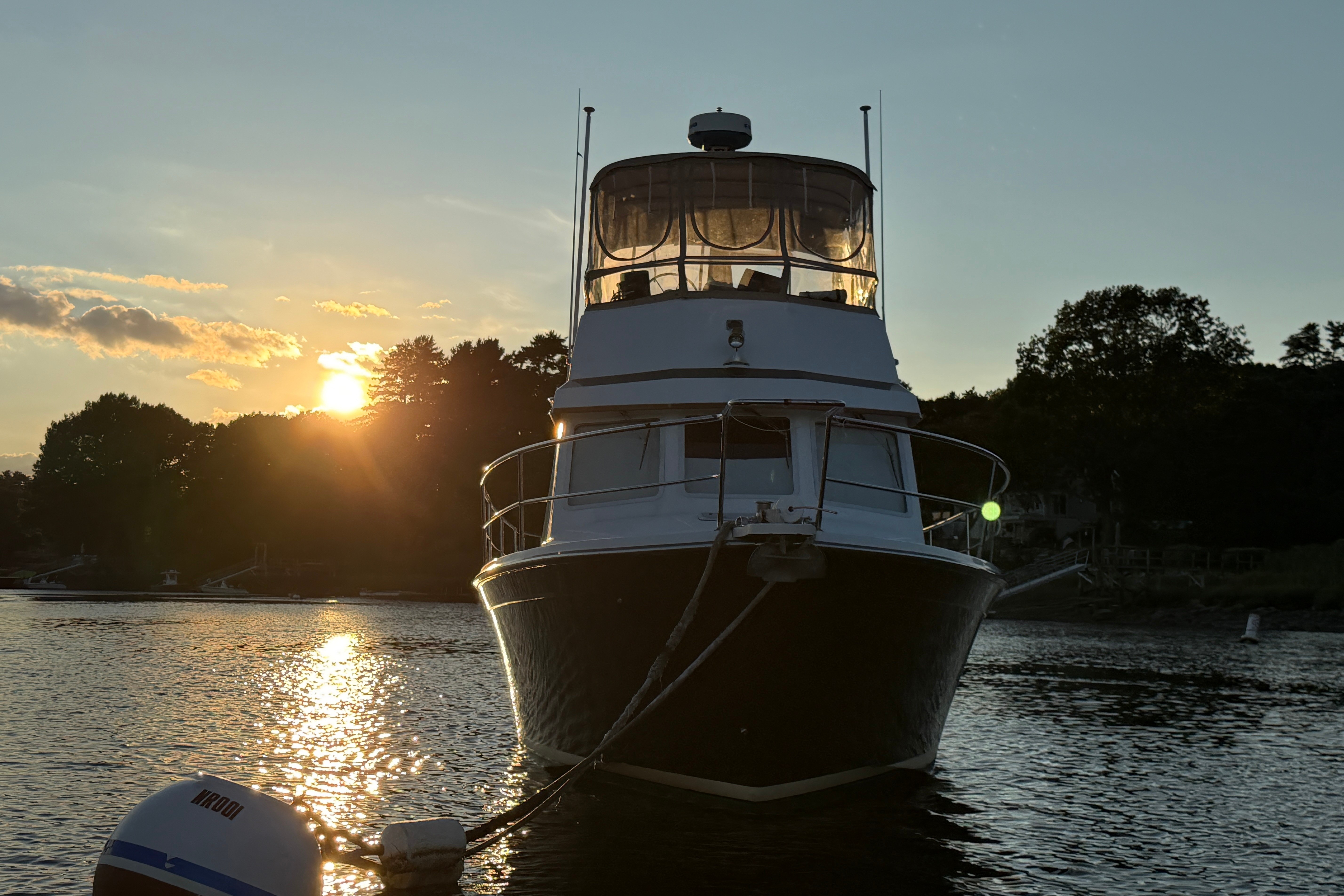

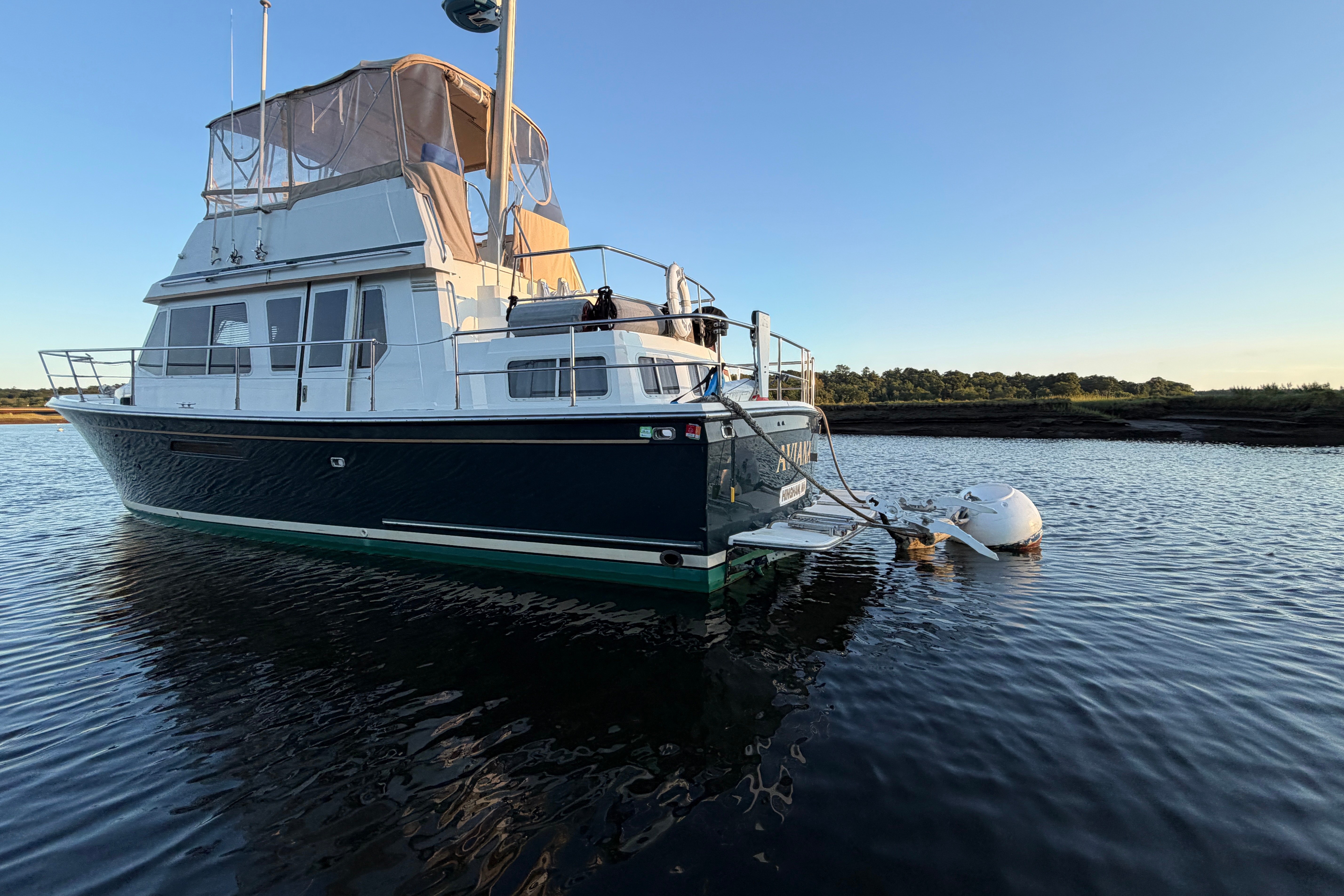

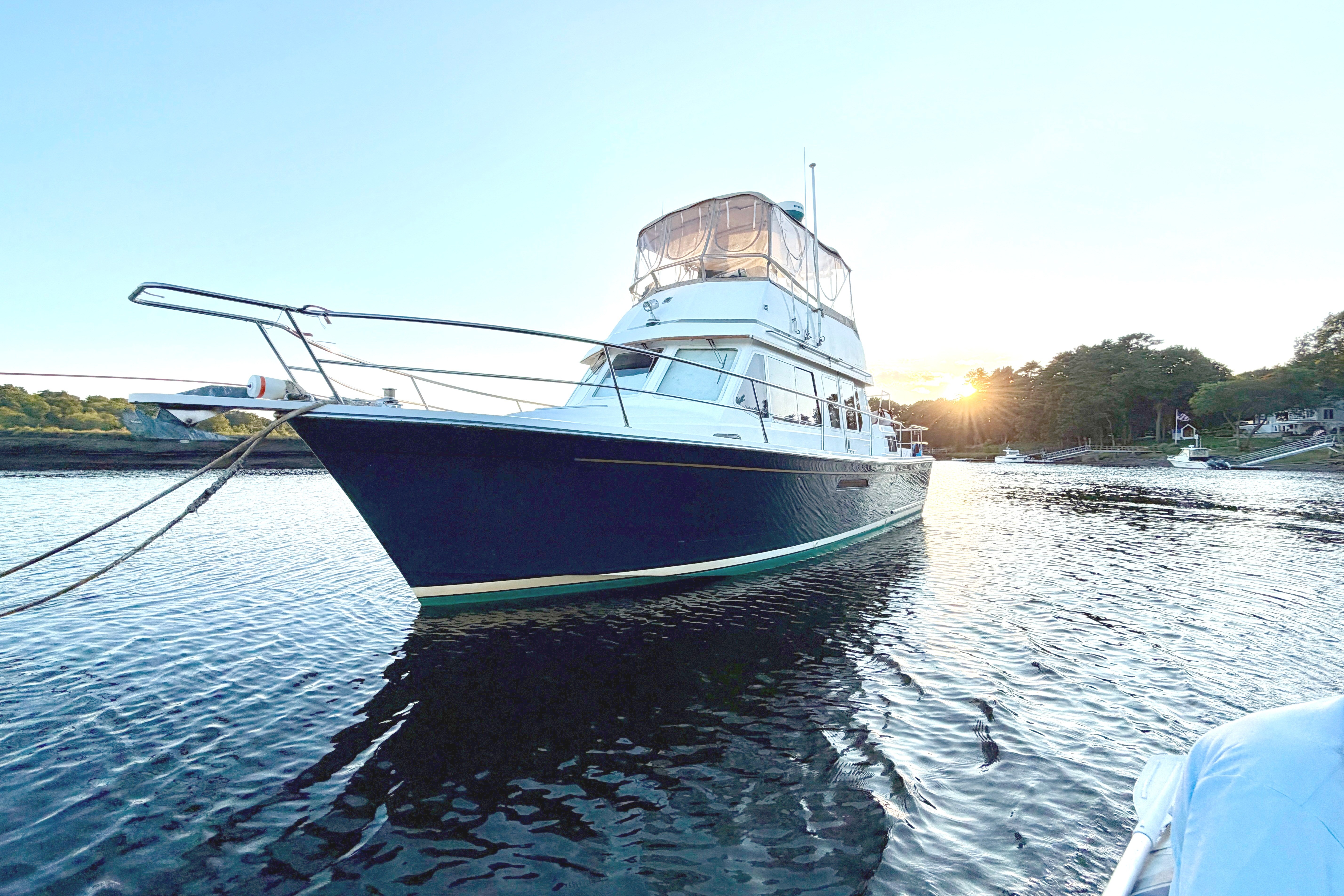

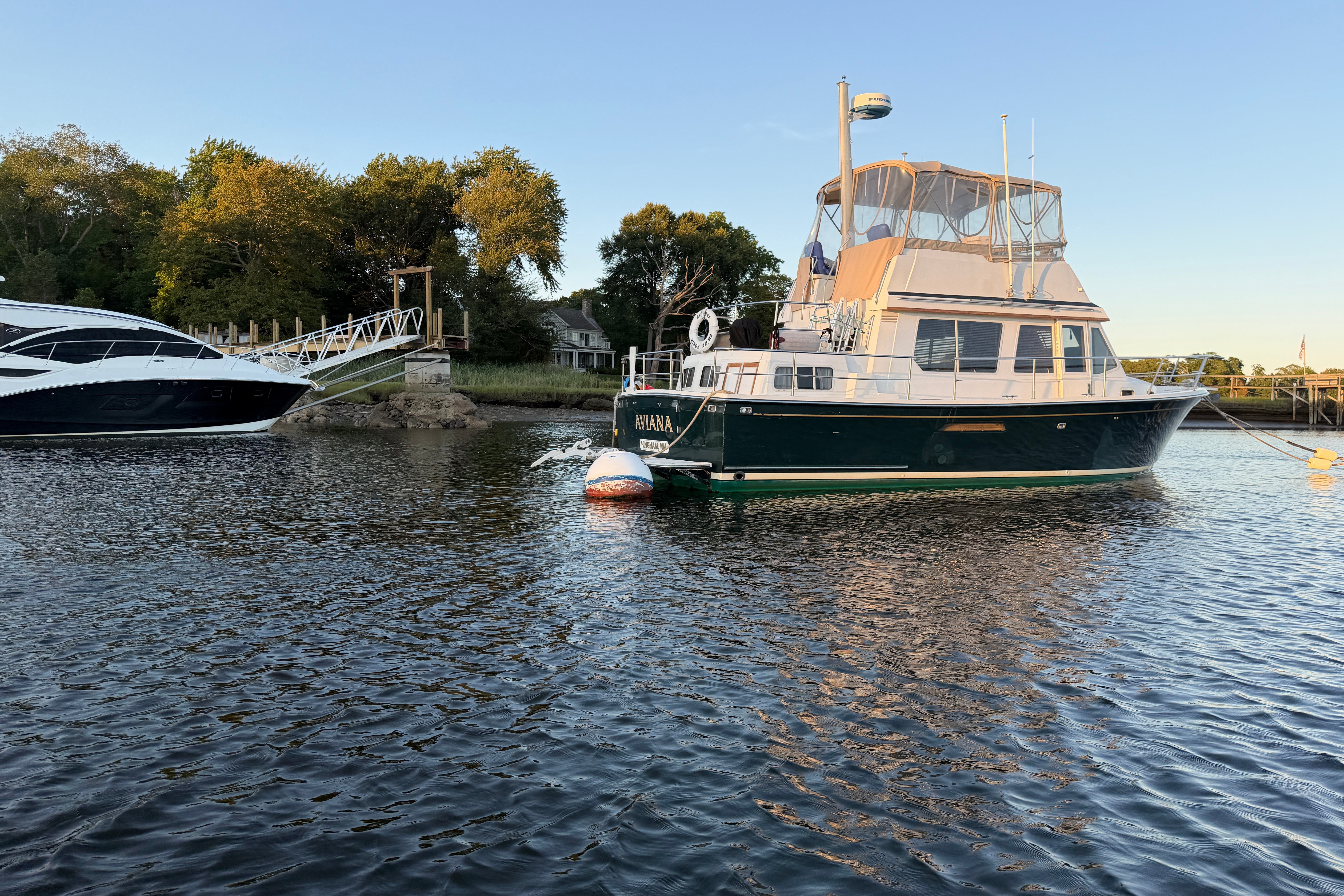

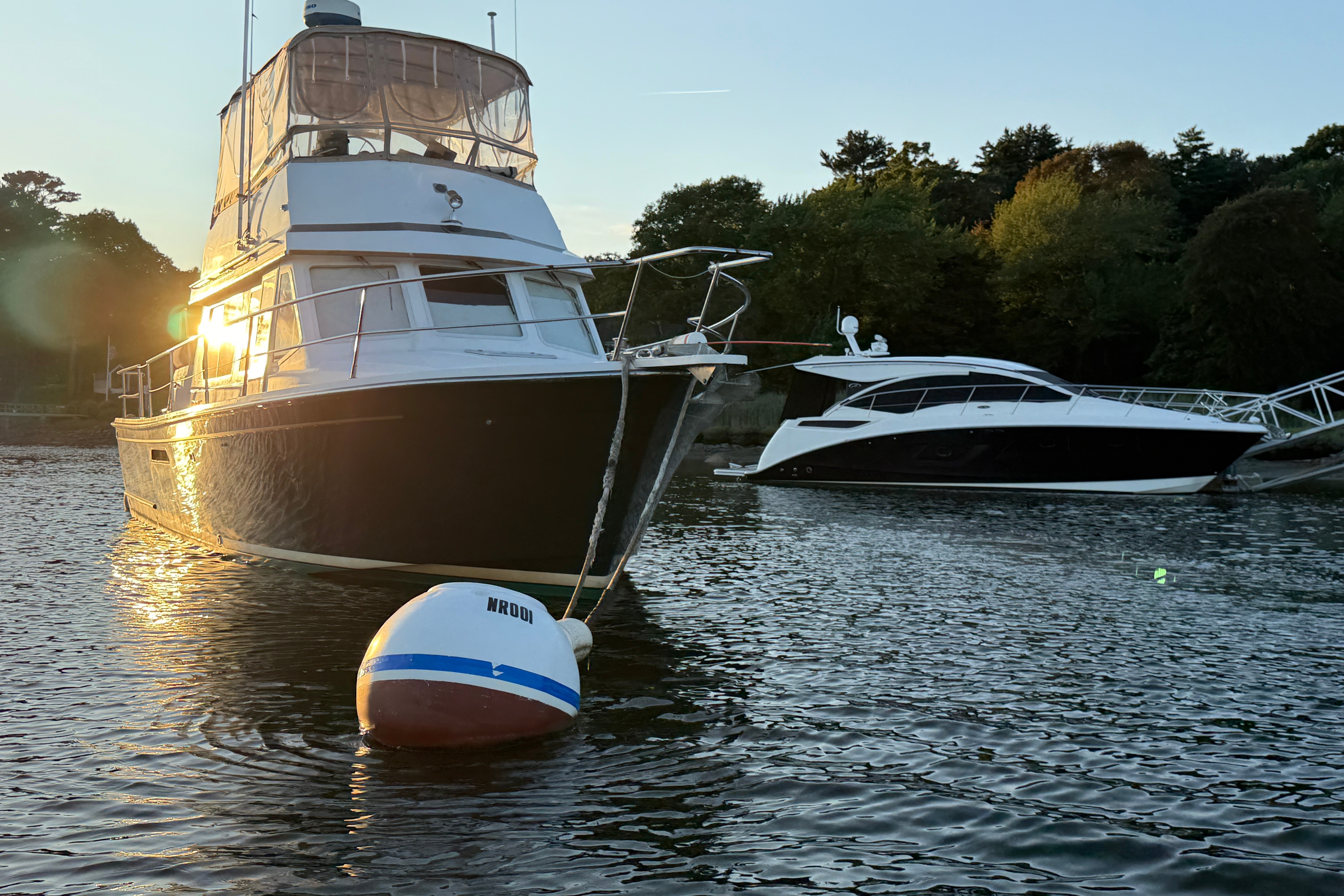

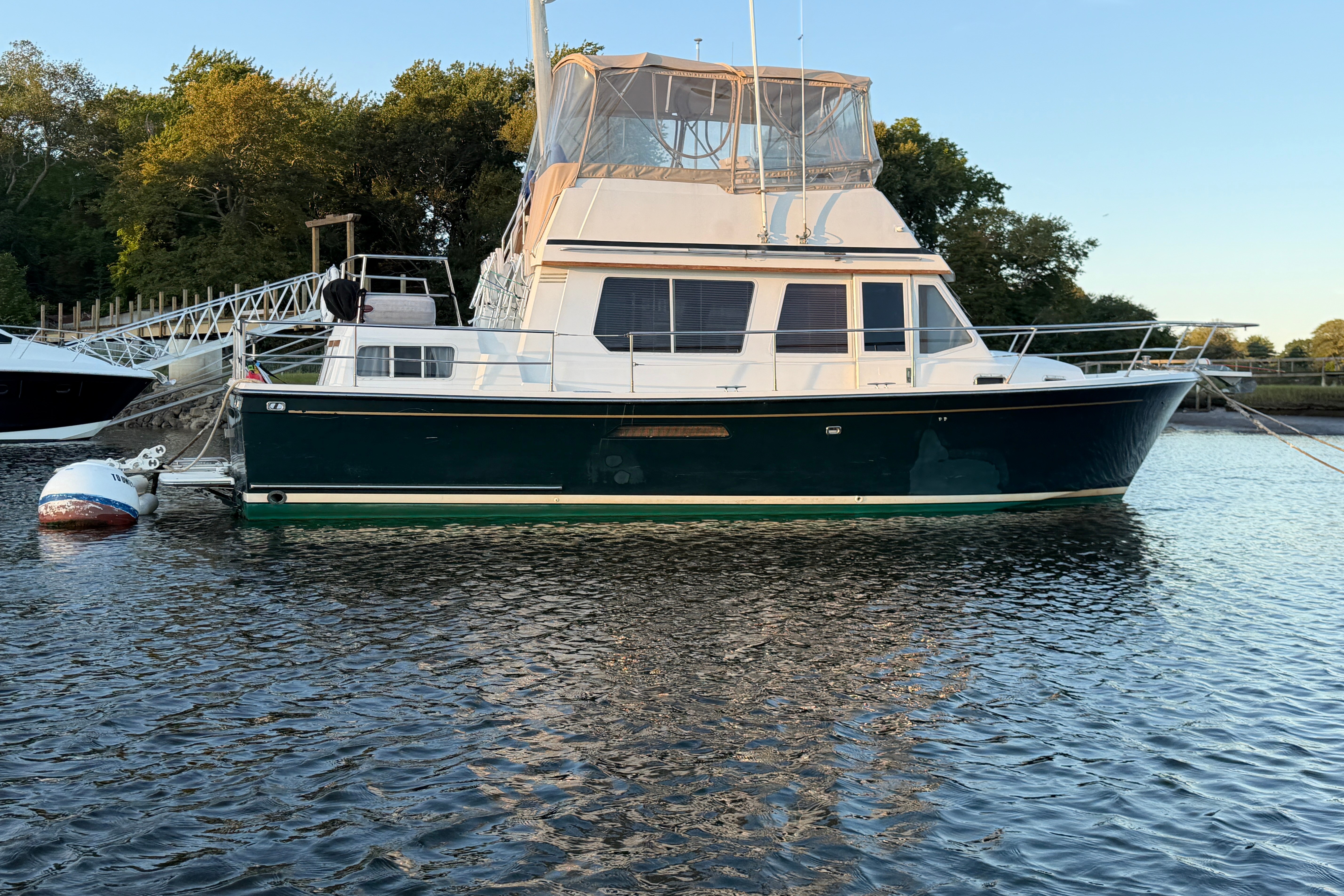

Aviana is a classic 1998 Sabreline 36 Aft Cabin, combining traditional Downeast/trawler styling with the performance of a modified-V hull and twin Caterpillar diesel power. Sabre marketed the 36 Aft Cabin as a “fast trawler,” capable of approximately 20 knots, with excellent visibility from both the flybridge and lower pilothouse helm.

This is a particularly versatile cruising layout, offering two private staterooms, two ensuite heads, dual helm stations, a full galley, generator, reverse-cycle heat/air conditioning and substantial fuel and freshwater capacity. The aft master stateroom also has its own private access to the aft deck.

Specifications

Builder: Sabre Yachts

Model: Sabreline 36 Aft Cabin

Year: 1998

Vessel Name: Aviana

Hull: Fiberglass / FRP

Hull Design: Modified-V with flared bow, hard chines and lifting strakes

LOA: 40' 1" including pulpit

Length on Deck: 36'

Beam: 12' 6"

Draft: 4' 3"

Displacement: Approximately 20,000 lbs

Fuel Capacity: Approximately 300 gallons

Fresh Water: Approximately 225 gallons

Holding Tank: Approximately 40 gallons

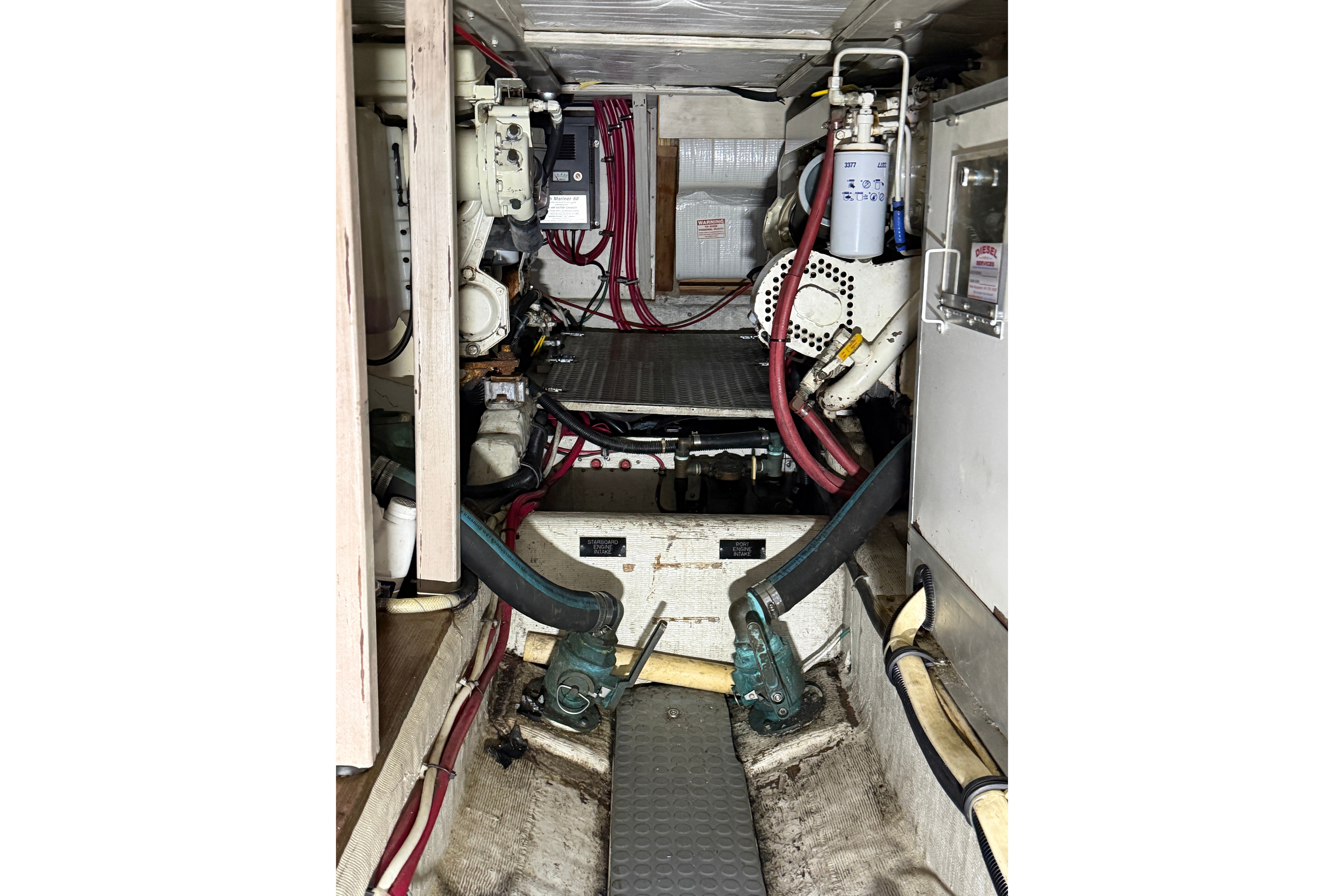

Power & Mechanical

Powered by twin Caterpillar 3116 turbocharged, direct-injection diesel engines, rated at 300 HP each at 2,800 RPM. The engines are coupled to ZF Marine IRM 220A-1 transmissions through a direct-drive configuration.

Mechanical equipment includes:

Twin Caterpillar 3116 300 HP diesels

ZF Marine transmissions

Glendinning engine synchronizer

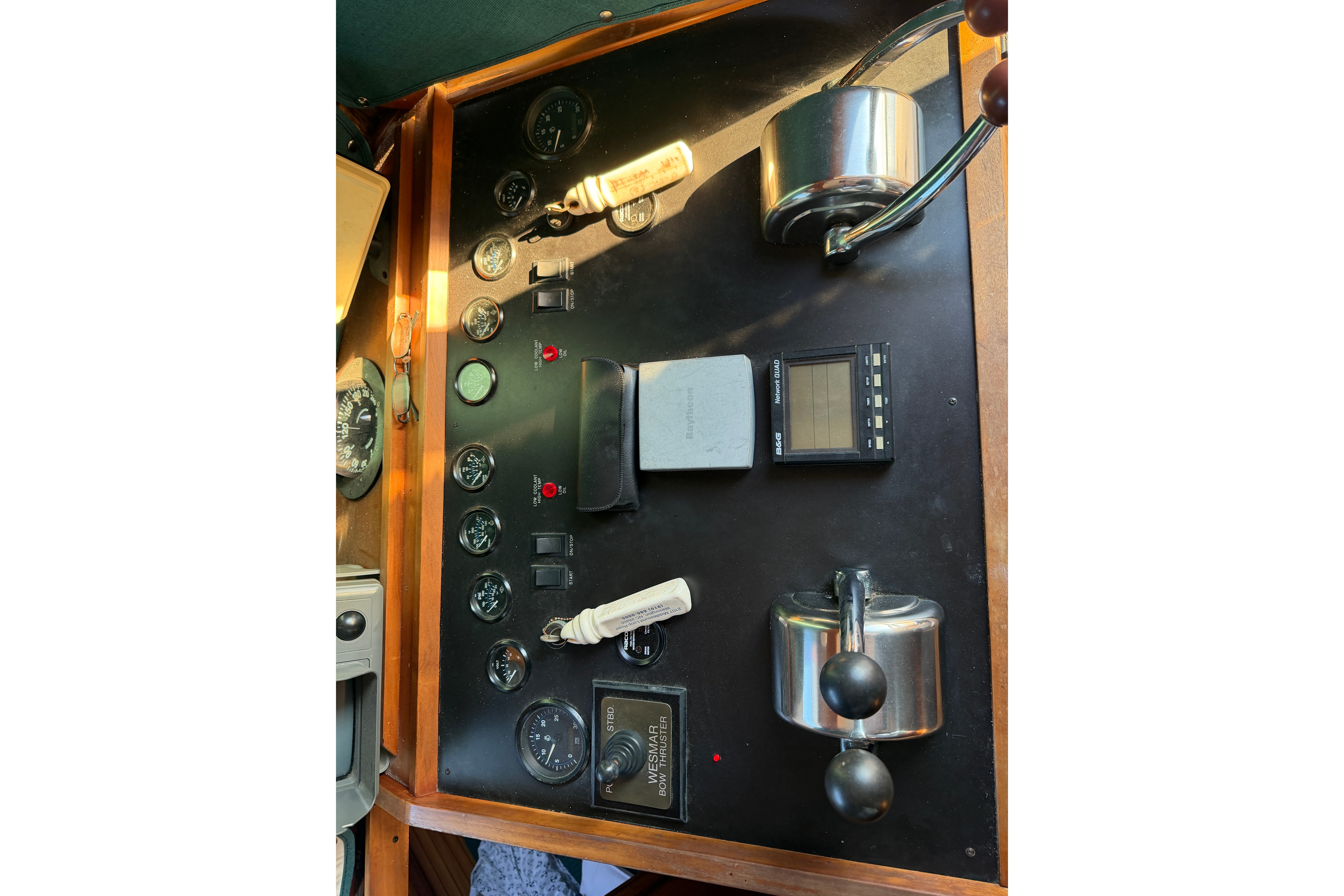

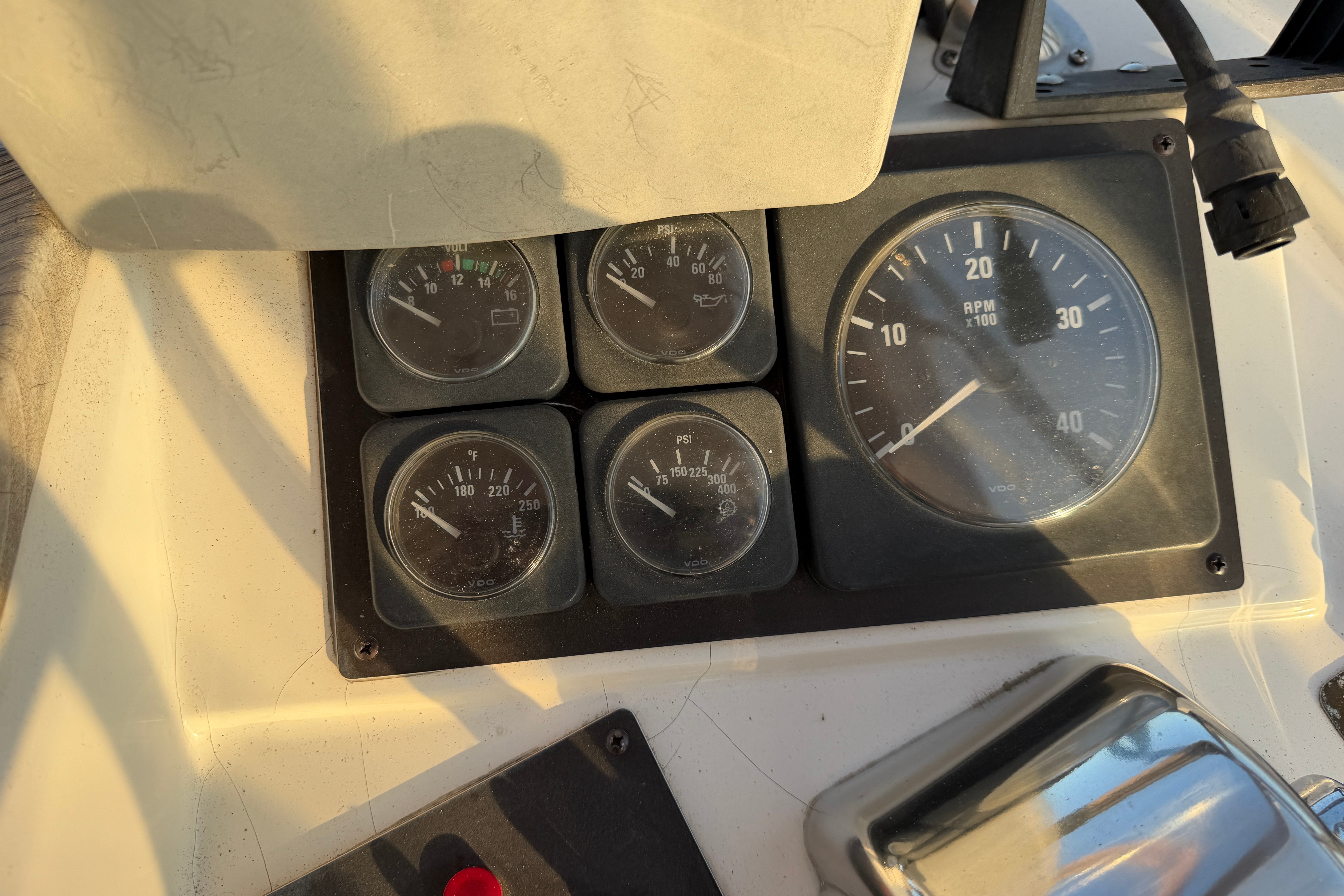

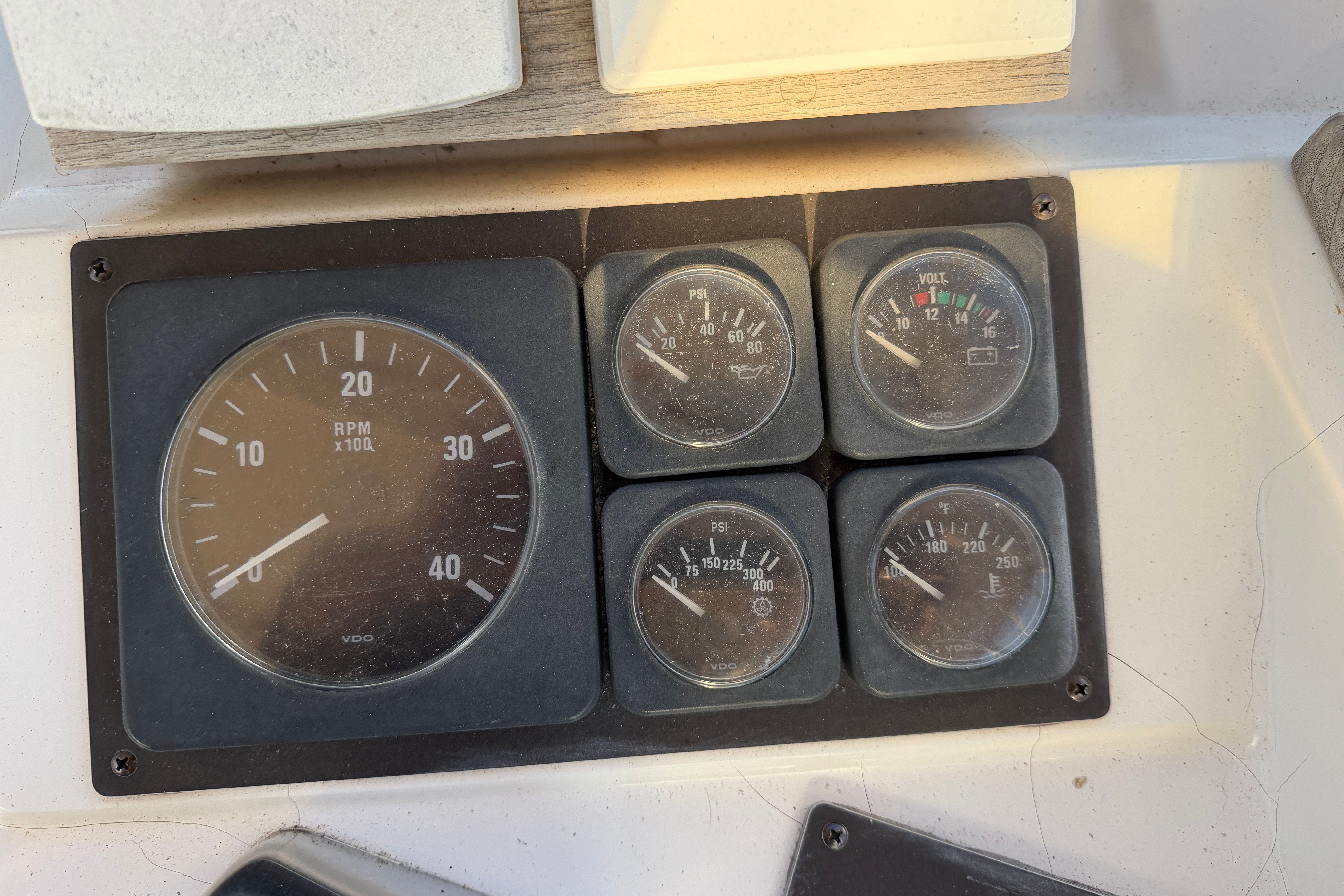

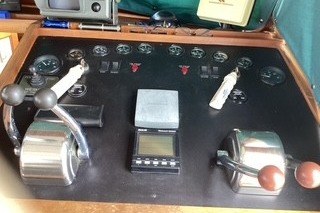

Dual-station engine instrumentation and controls

Closed-cooling engines with raw-water-cooled exhaust

Dripless shaft seals

Stainless-steel 1¾" propeller shafts

Twin bronze 24" four-blade propellers

Bronze rudders

Bennett electro-hydraulic trim tabs

Wesmar bow thruster

Racor primary fuel/water separators

Twin aluminum diesel fuel tanks

Approximately 300-gallon fuel capacity

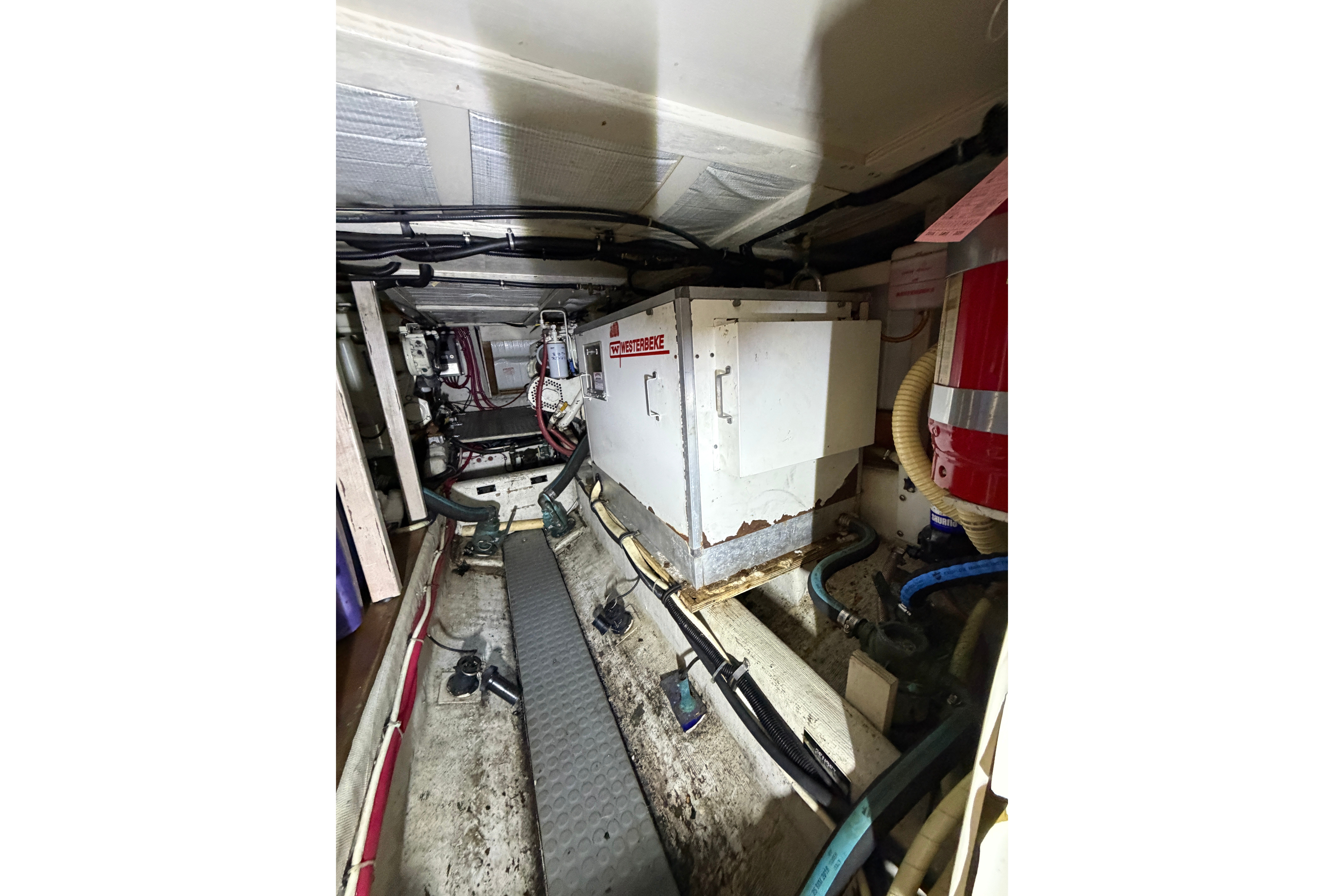

Westerbeke Generator

A Westerbeke 8.0 kW diesel generator provides onboard AC power for extended cruising and time away from the dock.

Generator Hours approximately : 2,518

Output: 8.0 kW

Speed: 1,800 RPM

Electrical: 120/240V AC, 60 Hz

Cooling: Closed coolant system with raw-water exhaust

Electronics & Navigation

Aviana is equipped for operation from either the flybridge or the protected interior helm.

Navigation equipment includes:

Raymarine RL70 flybridge GPS/chartplotter

Standard Horizon CP180 GPS/chartplotter at lower helm

Furuno radar with RSB-0071 scanner

Furuno GaAs radar display

Twin B&G multifunction displays

Dual Raymarine ST6000+ autopilot controllers

Ritchie Powerdamp compasses

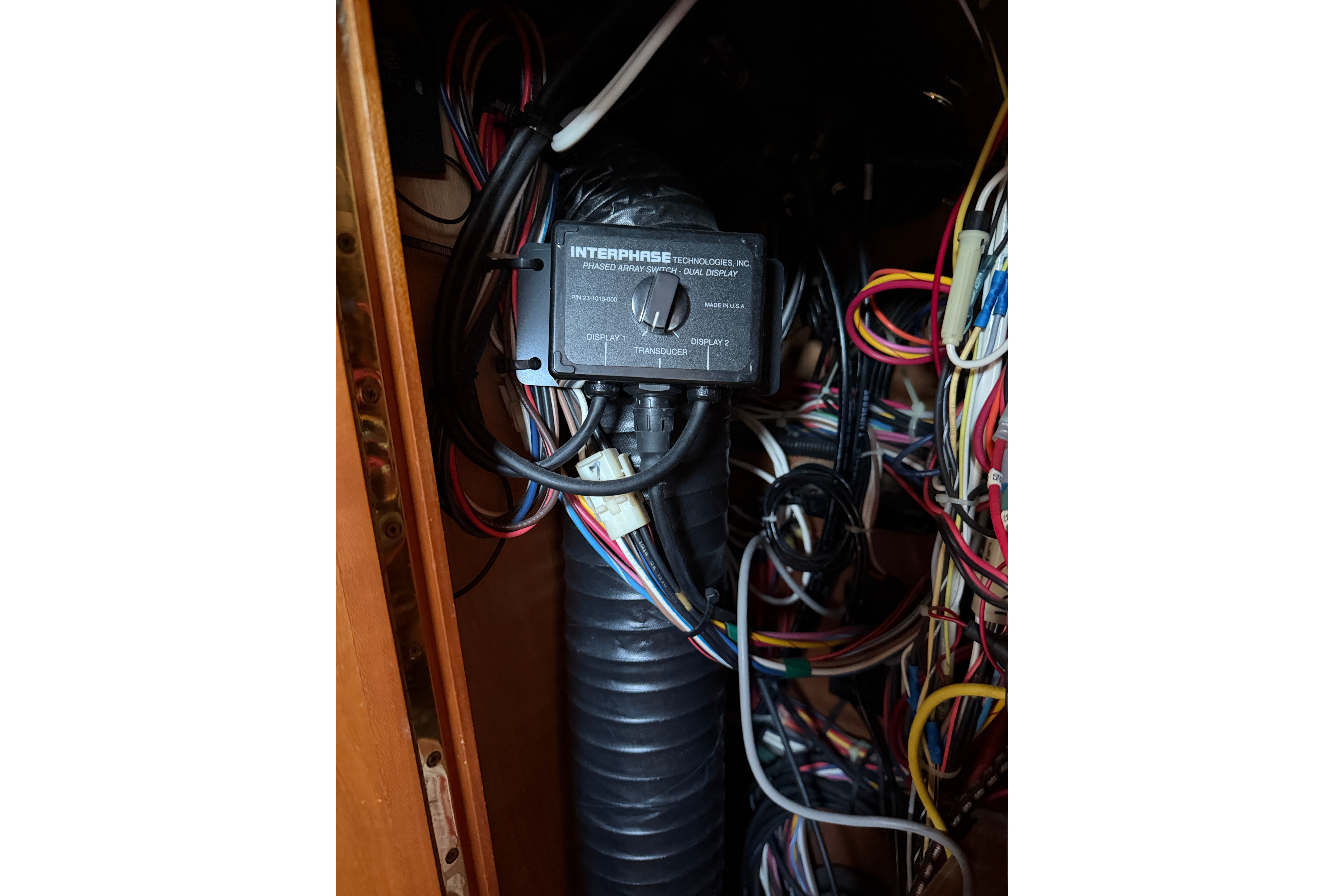

Probe Intelliphase fishfinder

Depth and speed displays

Icom IC-M45 VHF

Standard Horizon Eclipse VHF

Icom IC-M32 handheld waterproof VHF

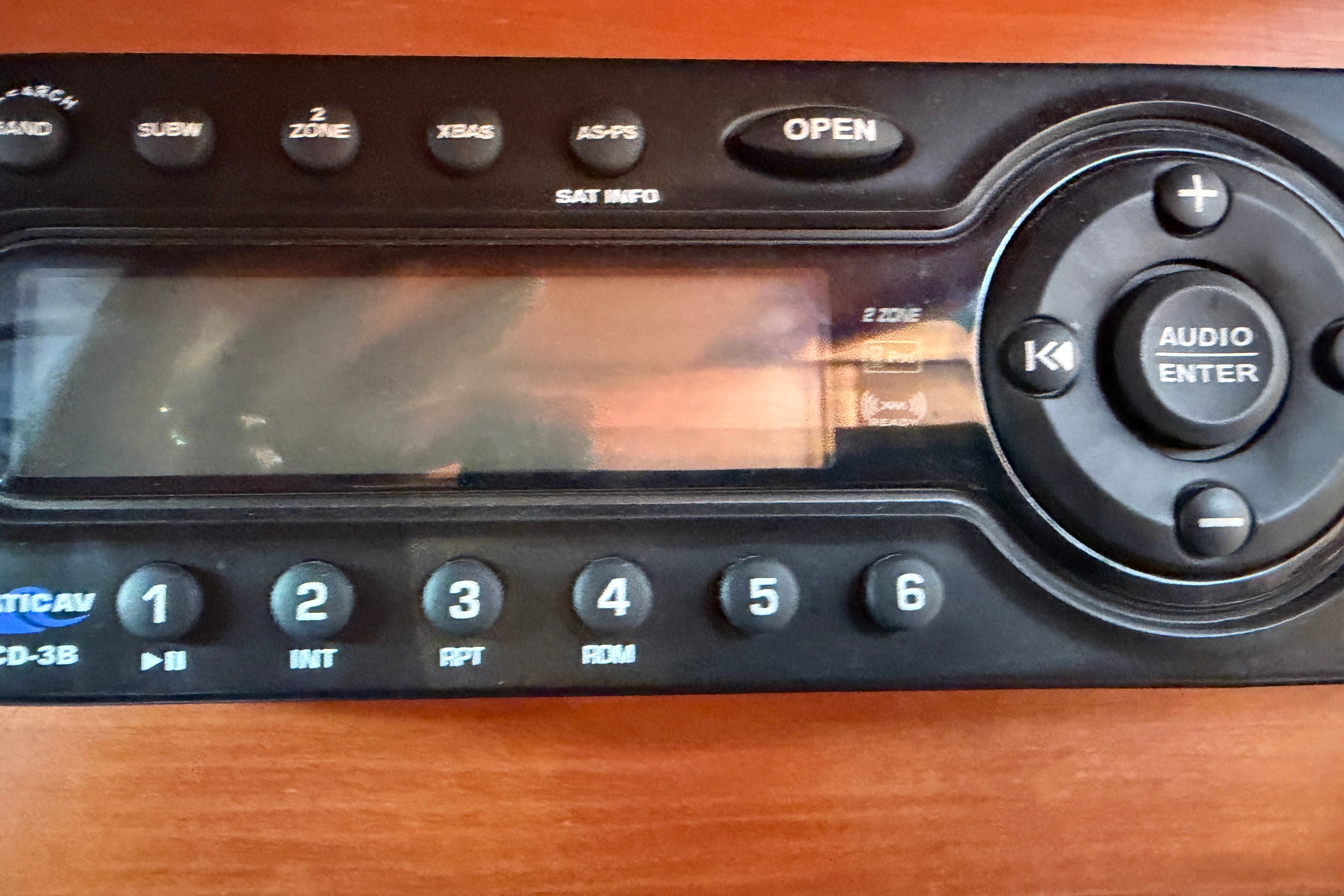

Aquatic AV marine stereo and speakers

ACR remote-controlled searchlight

Accommodations:

The Sabreline 36 Aft Cabin offers an excellent cruising layout for a boat of this size.

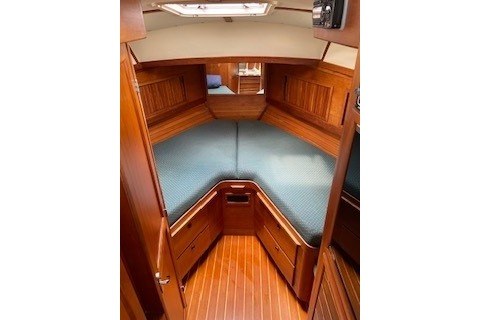

The forward guest stateroom features a double berth, storage and its own ensuite head.

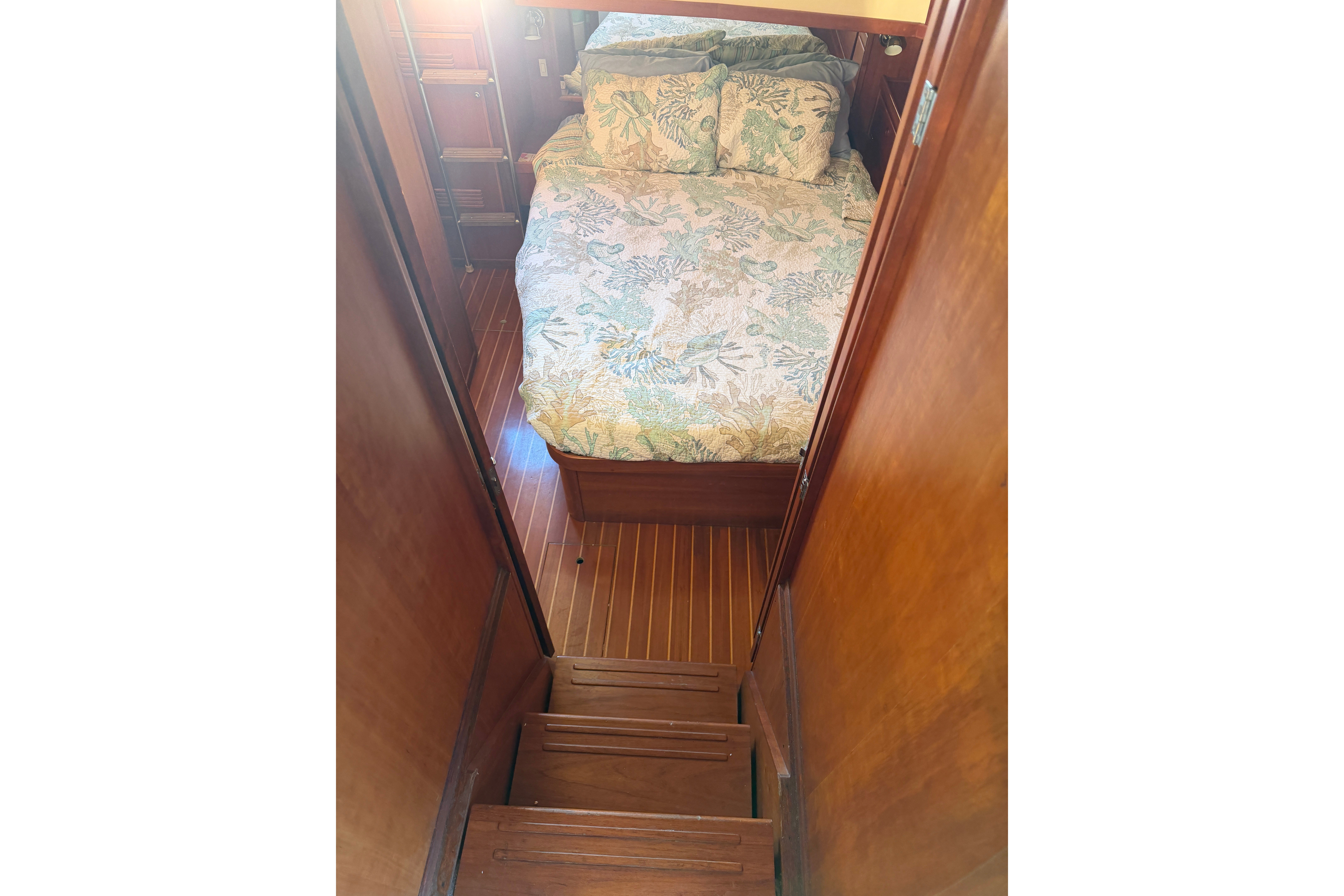

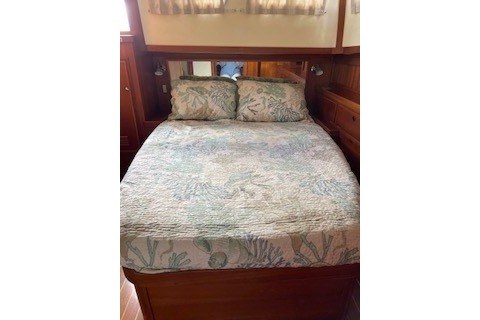

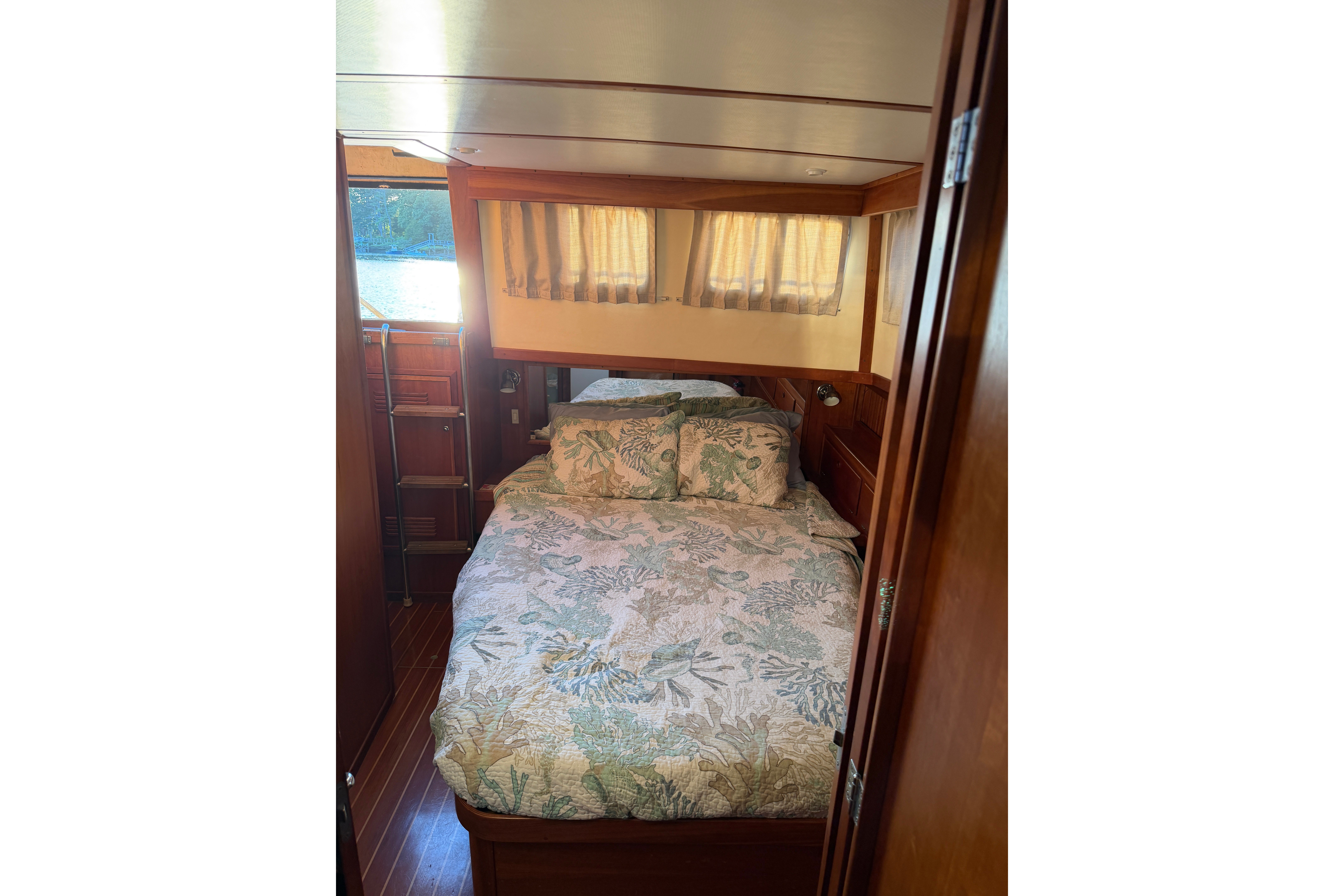

The aft master stateroom provides another double berth, abundant storage, a private ensuite head and its own exterior companionway leading directly to the aft deck.

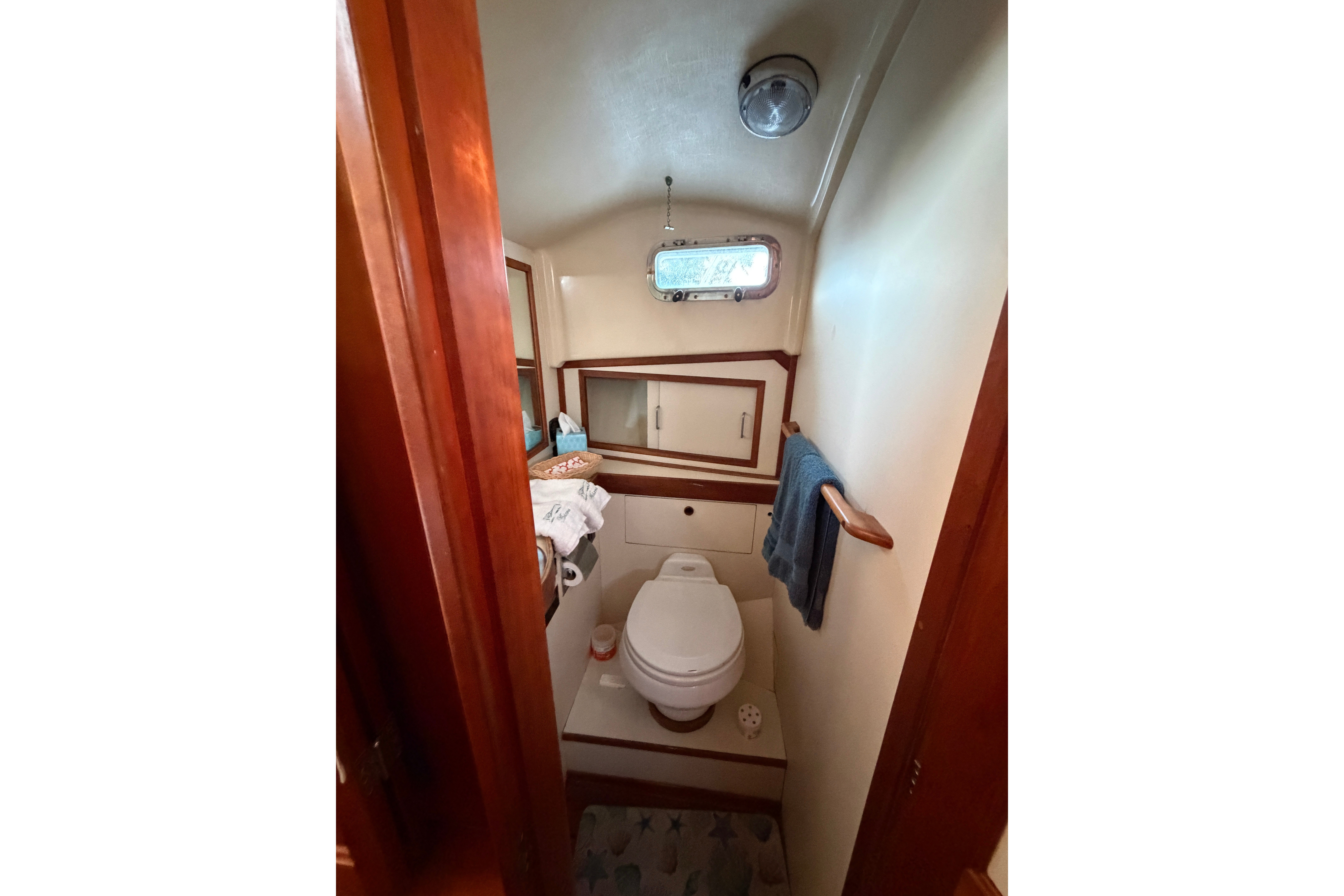

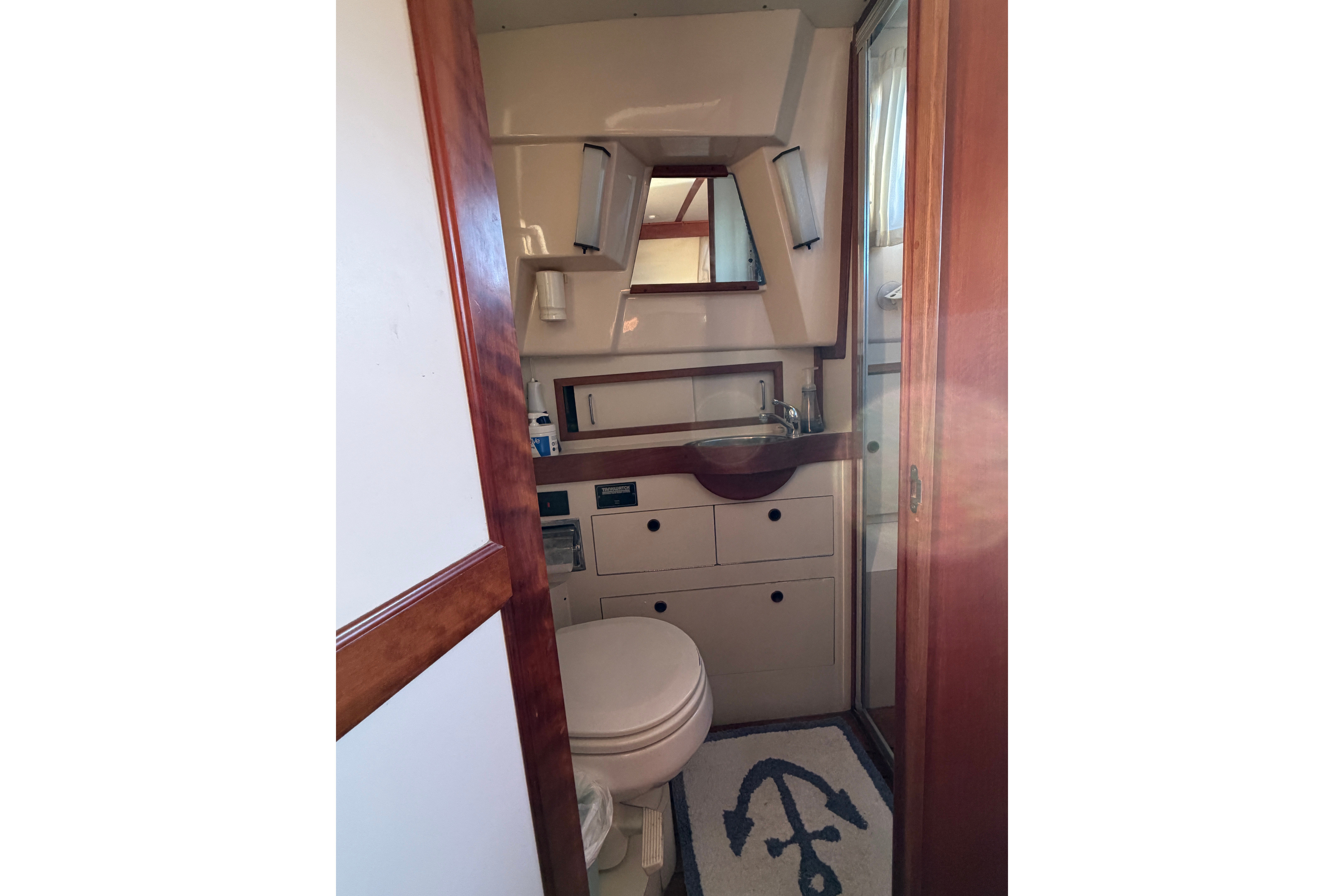

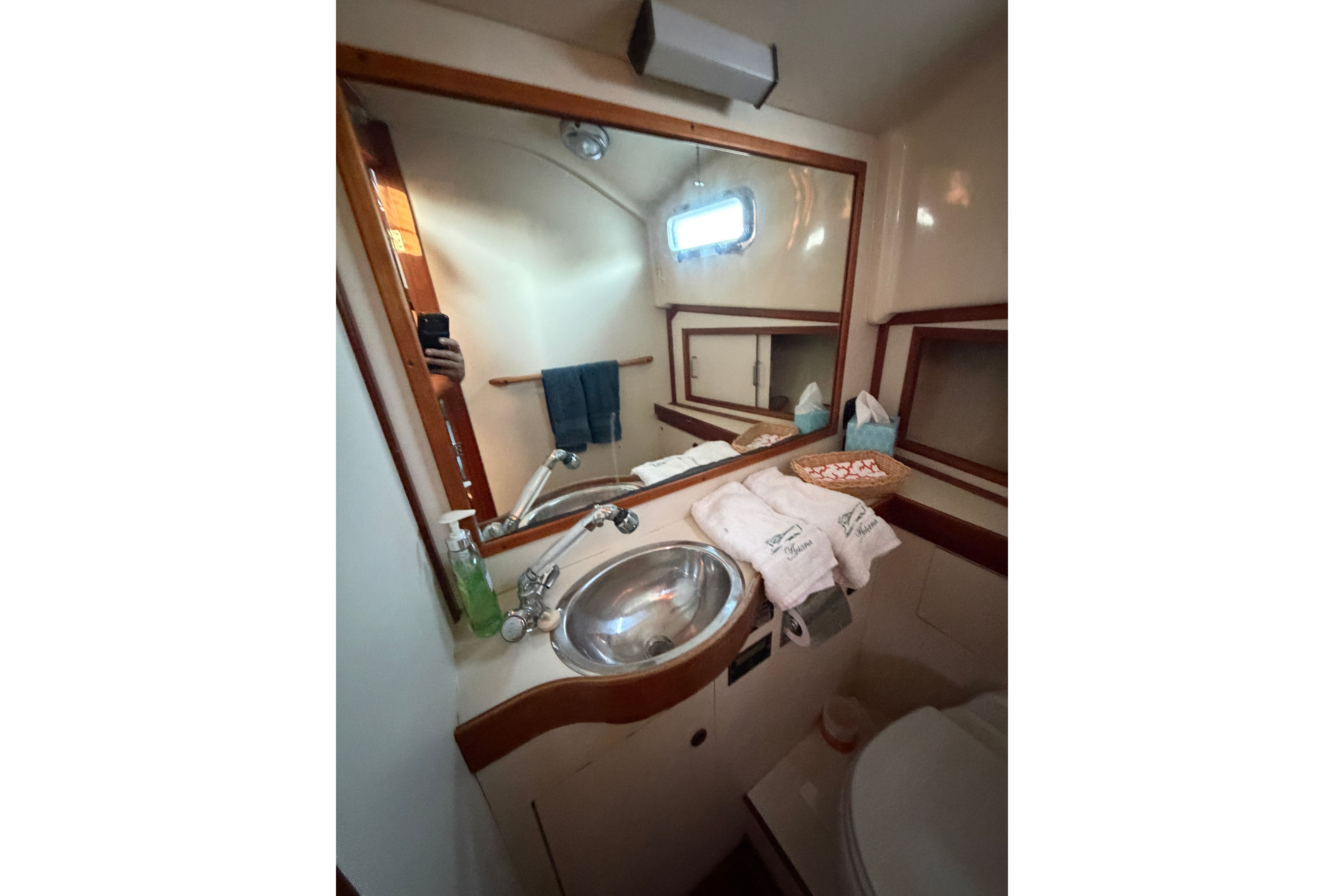

Both heads are equipped with electric VacuFlush toilets, stainless-steel sinks and hot/cold pressure water. The aft head also features a separate standalone shower stall. The salon dinette provides additional sleeping accommodations for two when needed.

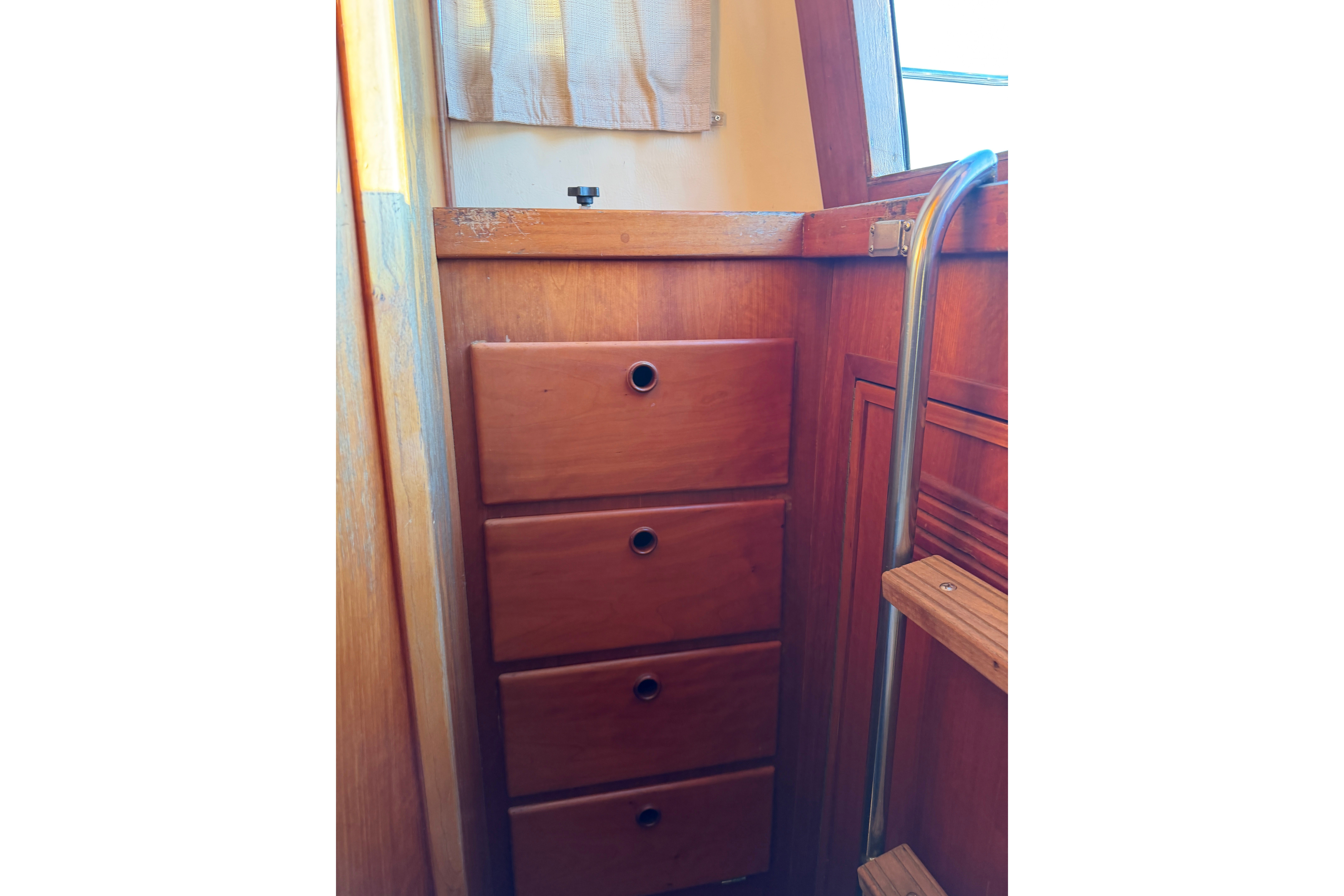

Beautiful satin-finished teak cabinetry and trim run throughout the interior, complemented by a teak-and-holly cabin sole. The 2022 survey reported no significant signs of interior water intrusion.

Salon & Galley

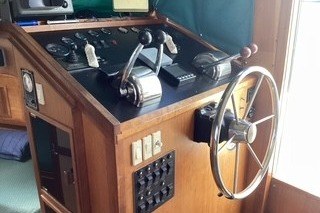

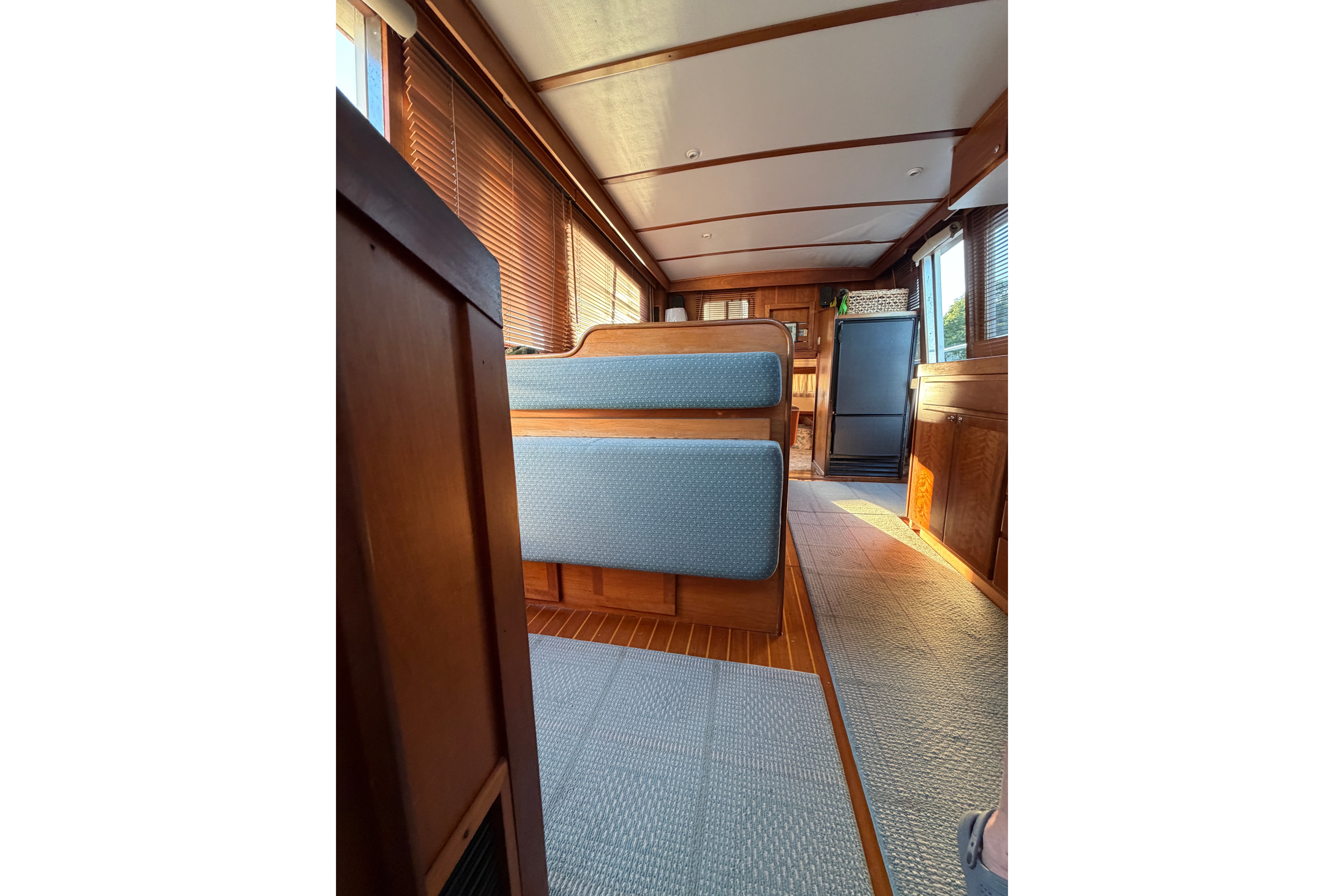

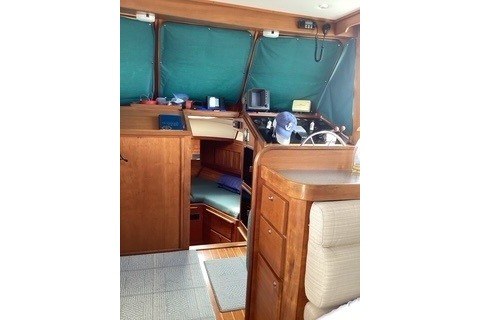

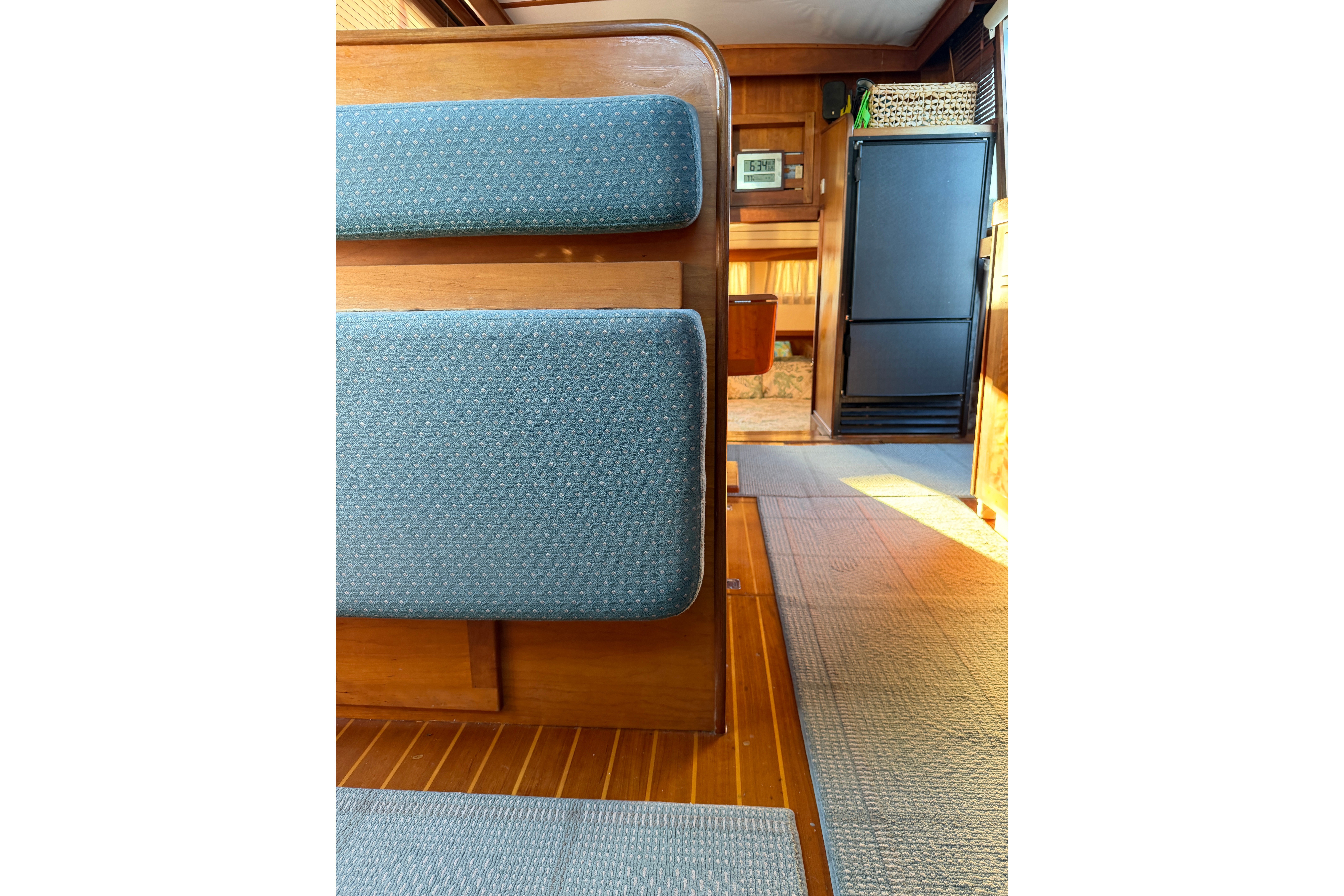

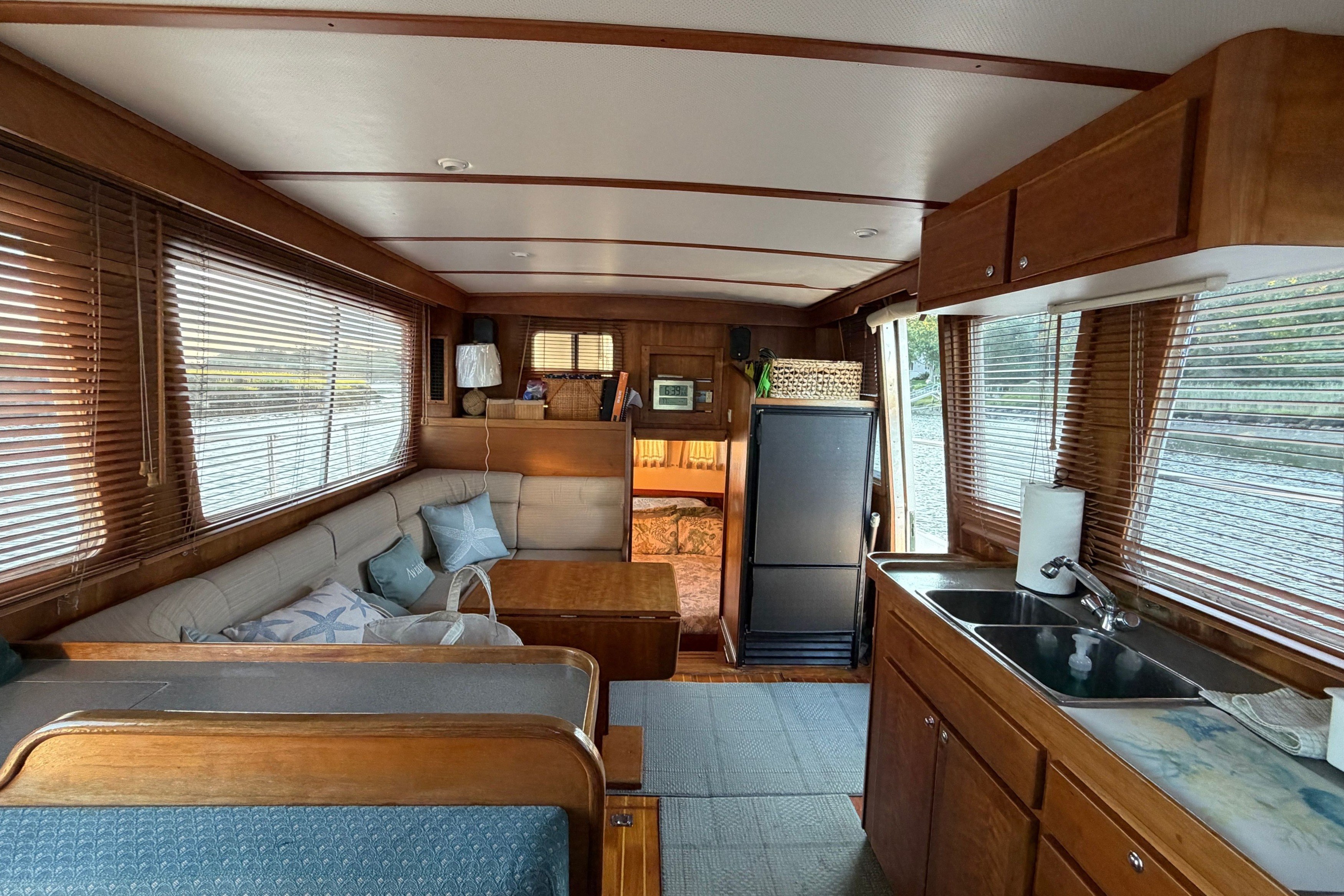

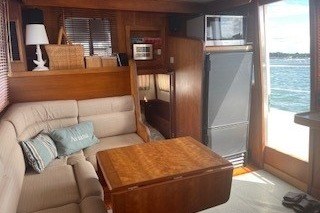

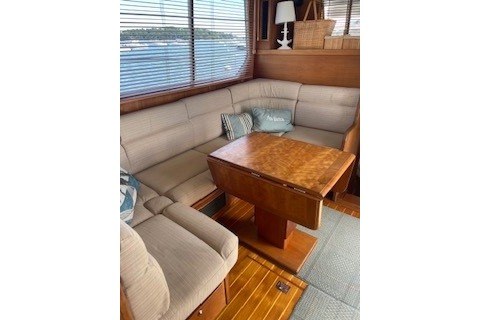

The bright salon can be accessed from either the port or starboard sliding pilothouse doors. The lower helm is positioned forward to starboard, the galley runs along the port side, and a comfortable U-shaped dinette is located aft to starboard.

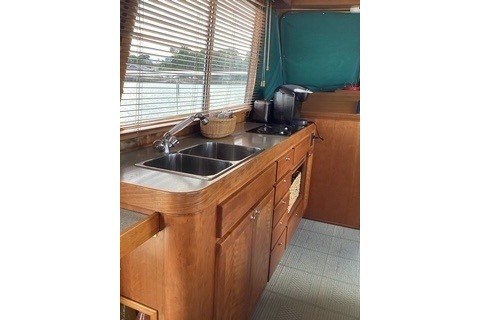

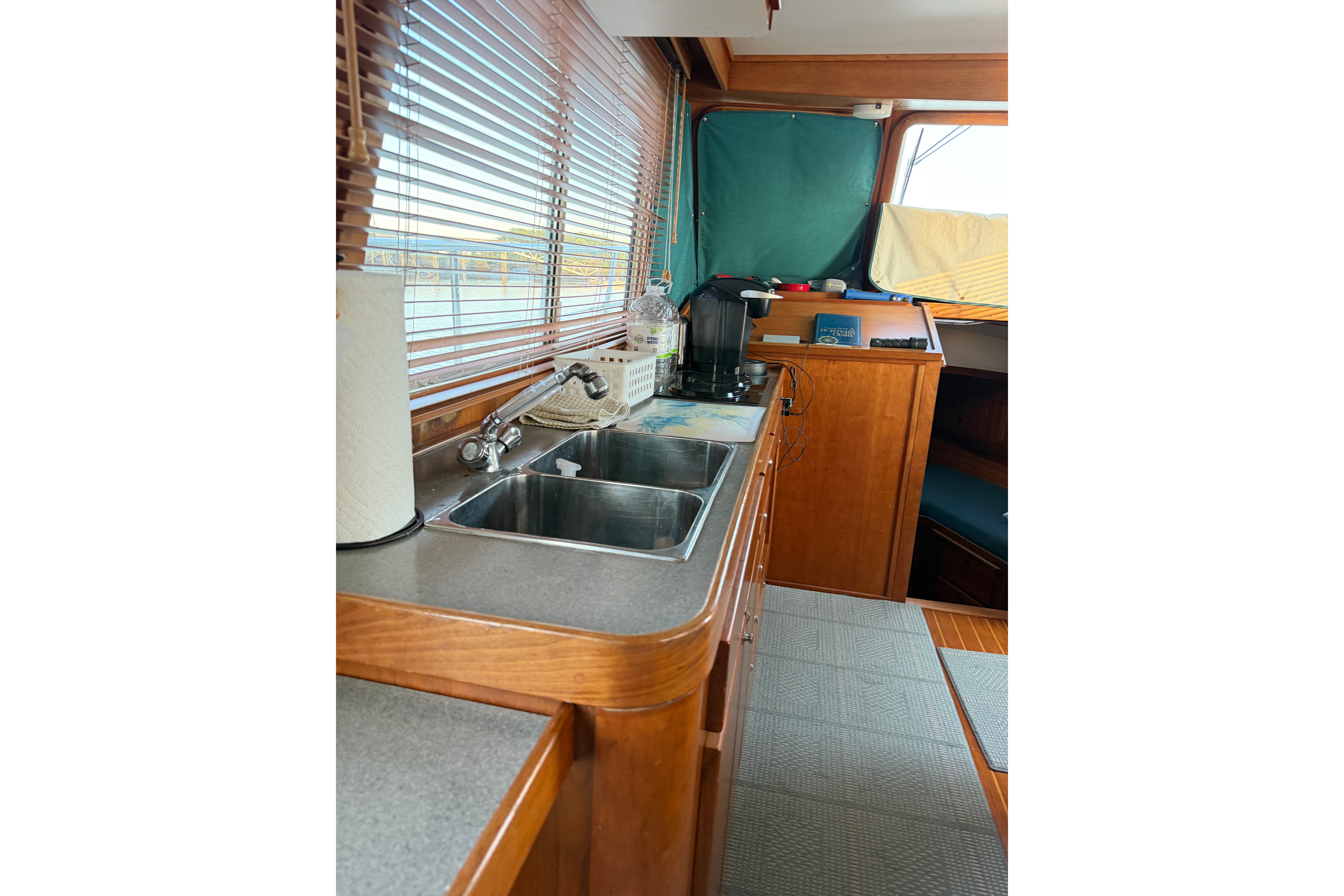

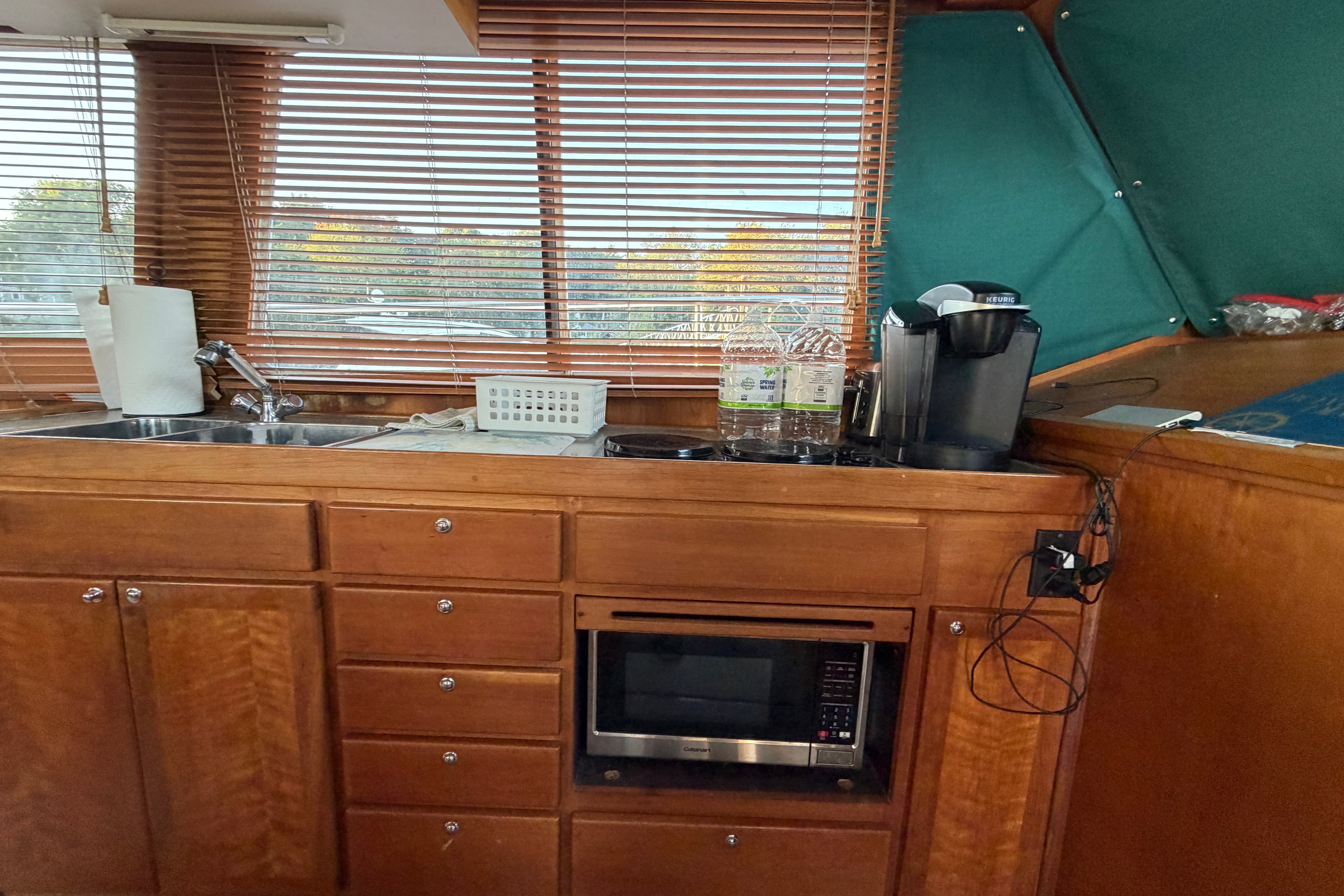

The galley includes:

Double stainless-steel sink

Hot and cold pressure water

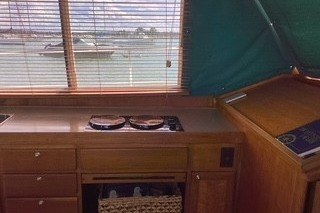

Princess two-burner electric cooktop

Panasonic stainless-steel microwave

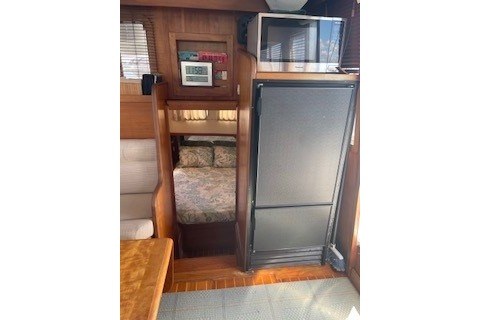

Nova Kool AC/DC refrigerator/freezer

Generous teak cabinetry and storage

Comfort & Cruising Systems

Aviana is well equipped for extended cruising and comfortable overnight stays with:

Two Marine Air reverse-cycle heat/air-conditioning systems

Approximately 225 gallons freshwater capacity

Three polyethylene freshwater tanks

6-gallon marine water heater

Approximately 40-gallon holding tank

Pressure freshwater system

Two VacuFlush heads

Separate aft shower

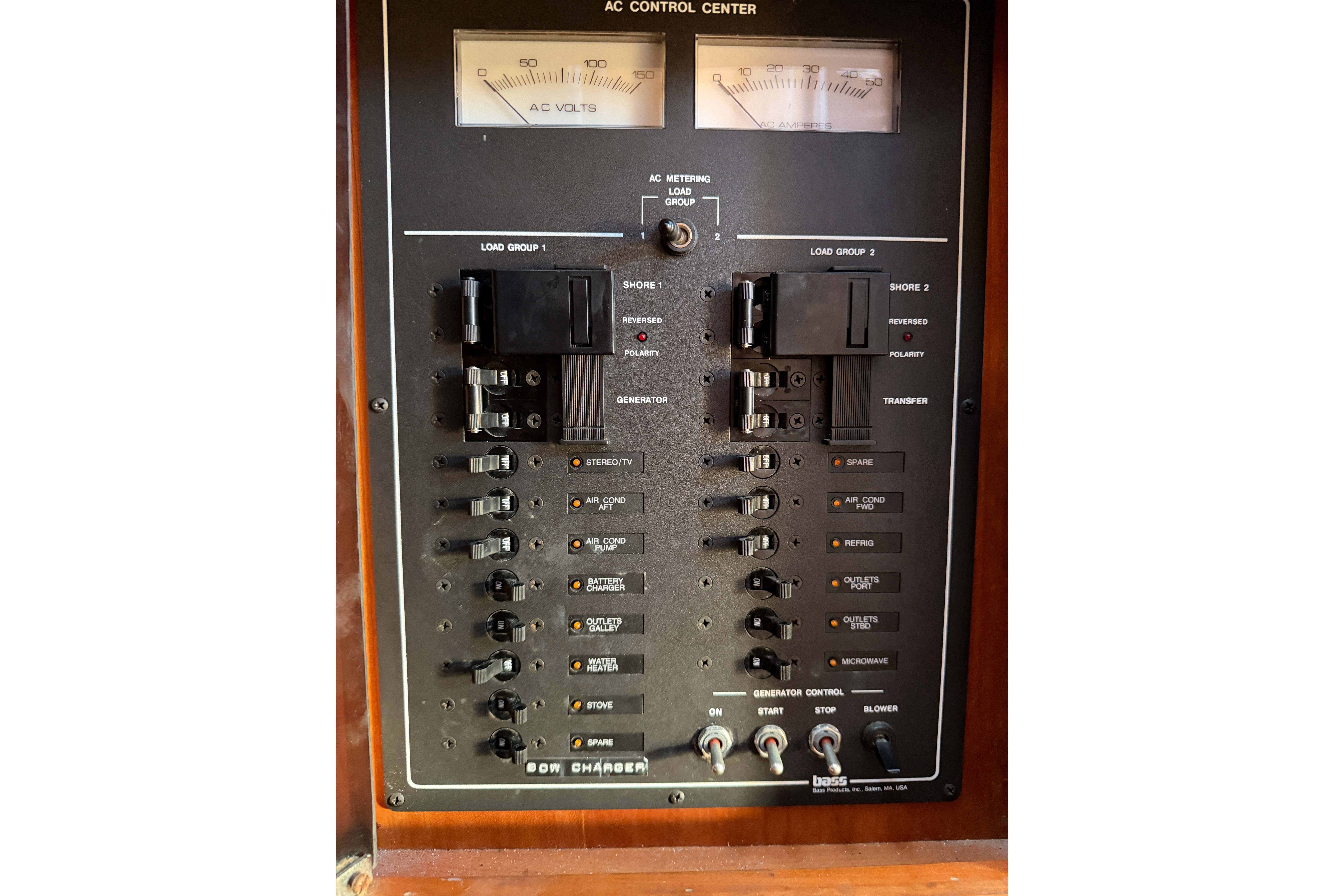

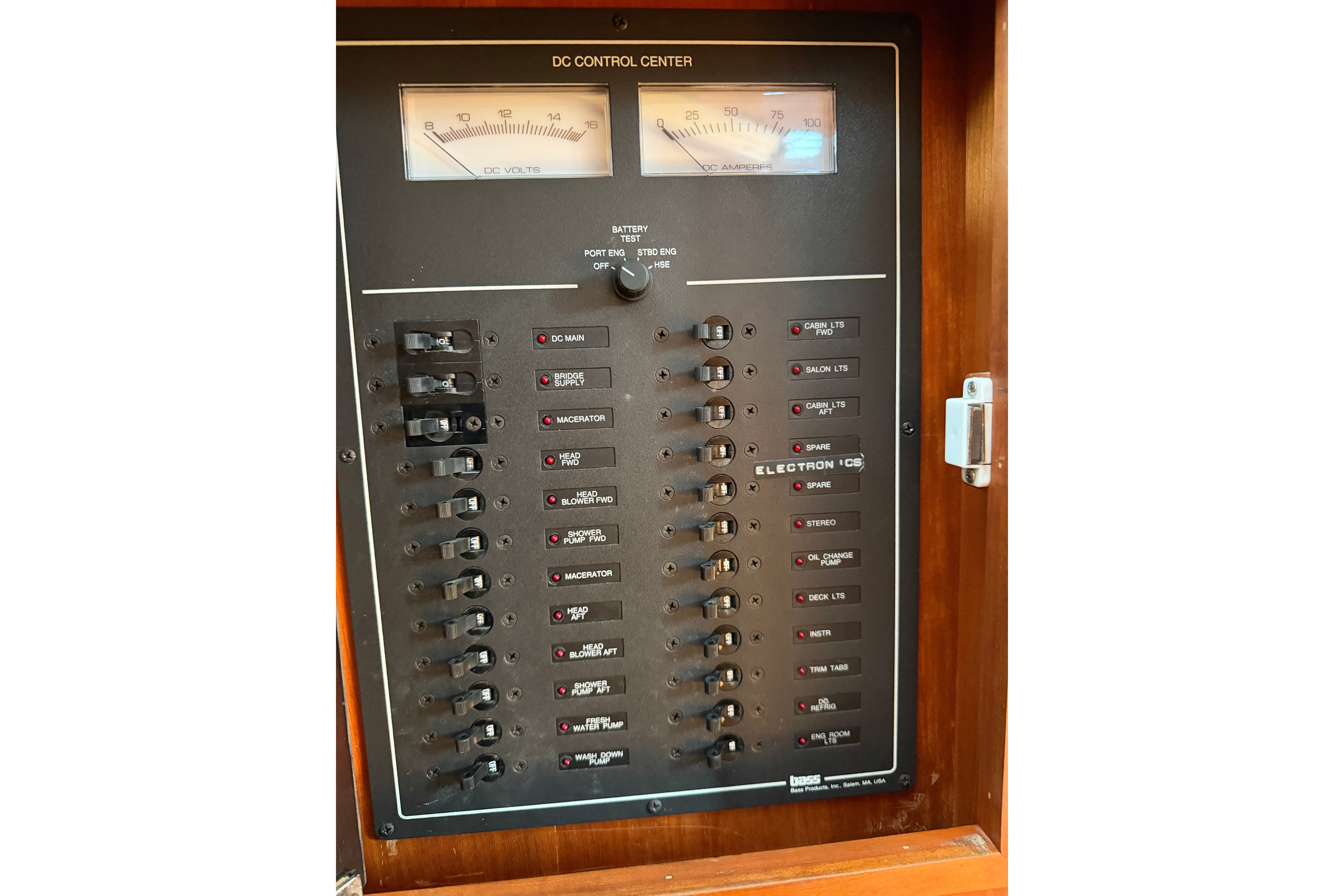

12V and 120V electrical systems

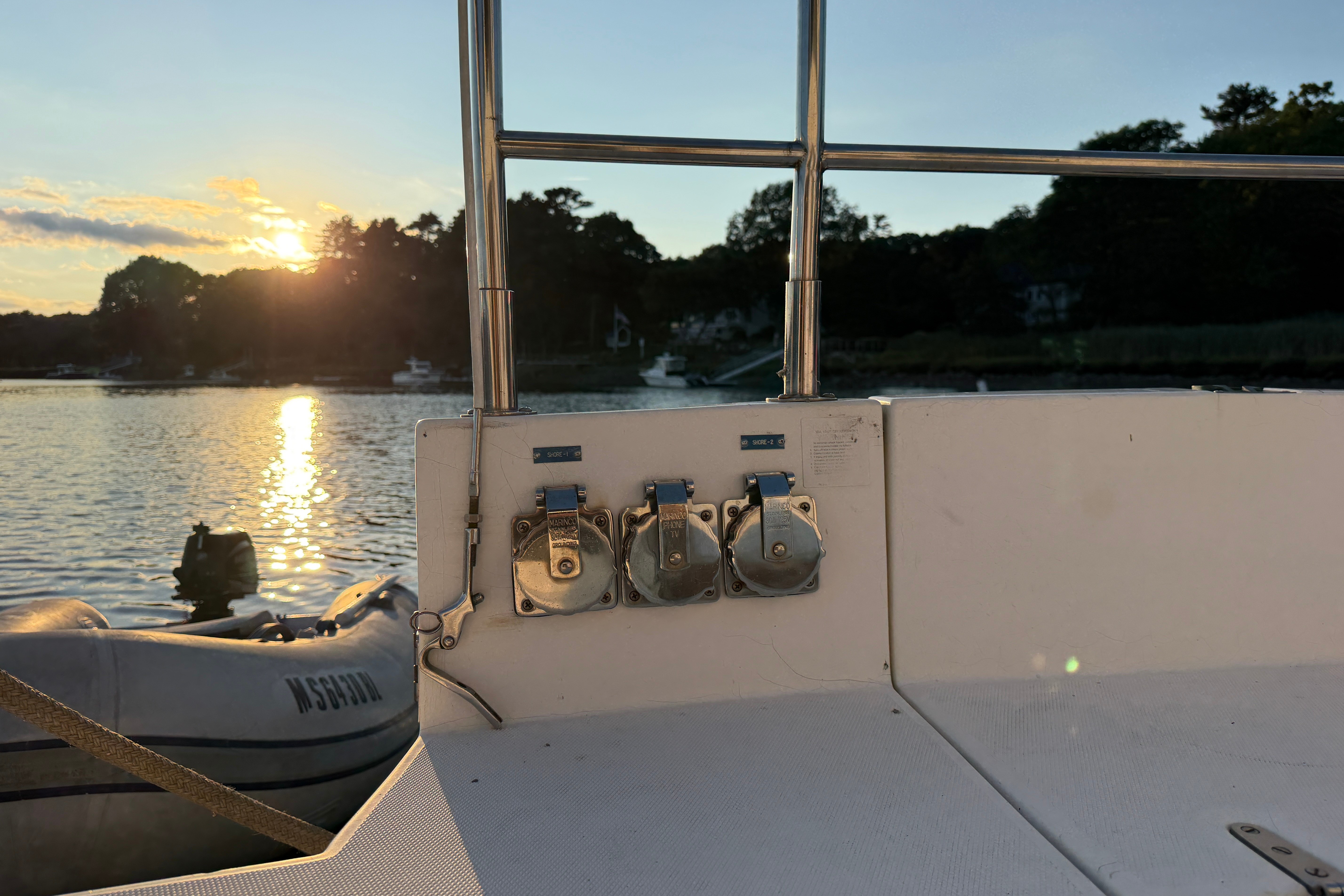

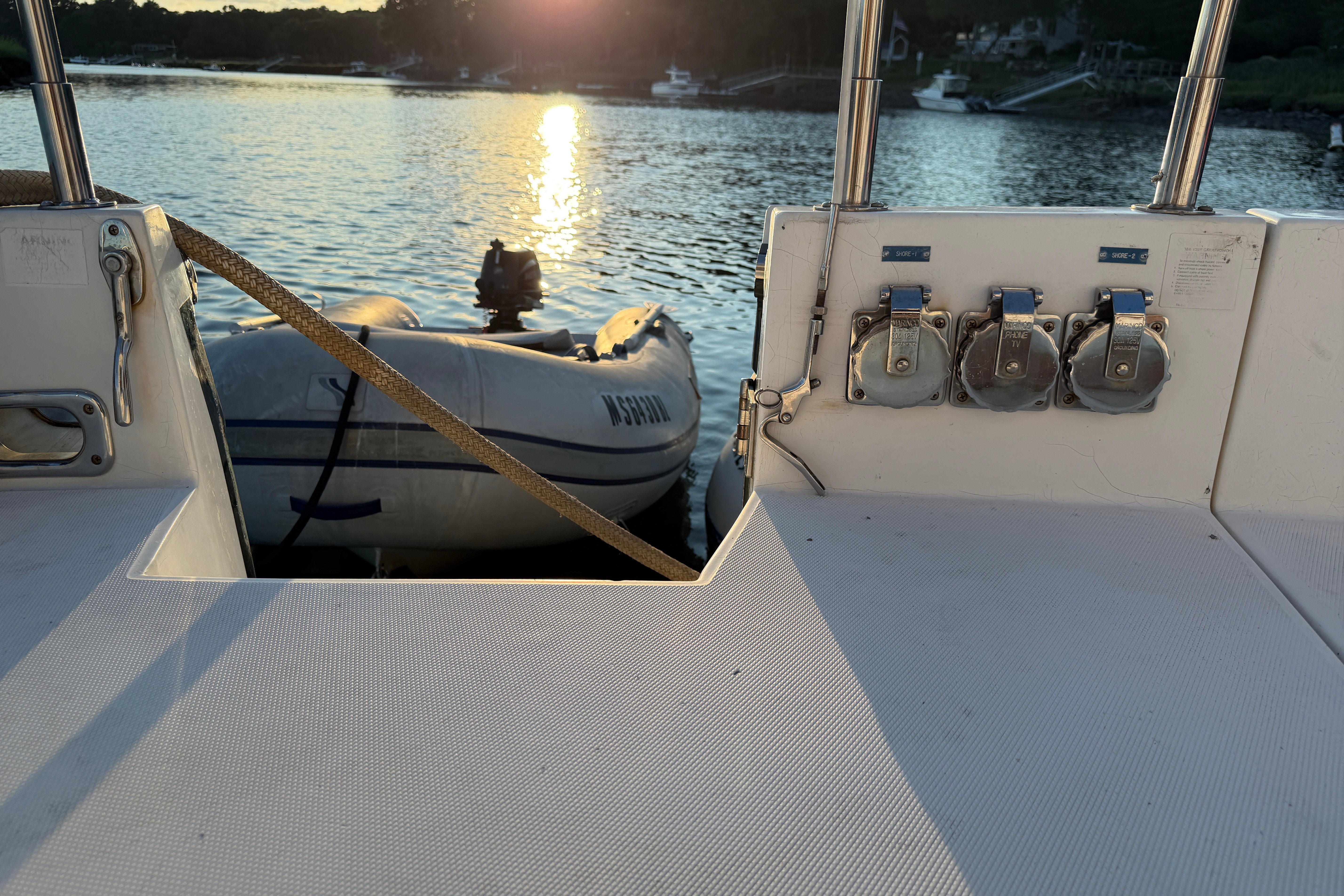

Dual 30-amp/125V shore-power connections

ProMariner 60-amp battery charger

Mastervolt Battery Mate isolator

Dedicated house, engine-start and generator-start battery banks

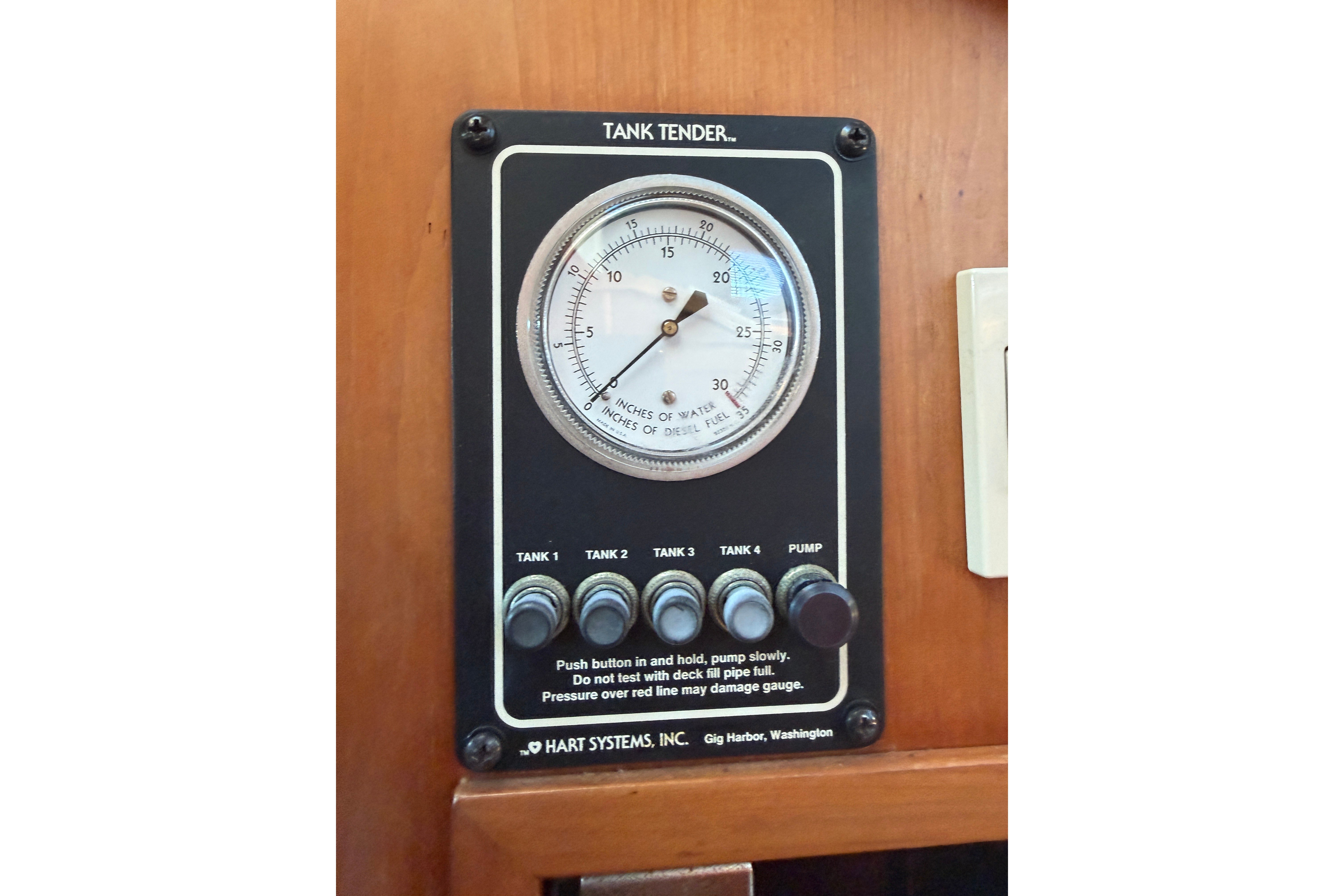

The freshwater system consists of three tanks totaling approximately 225 gallons, providing excellent capacity for cruising and extended stays aboard.

Deck & Exterior

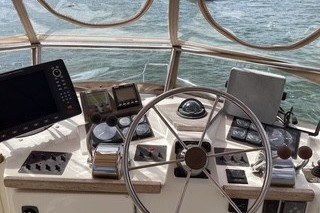

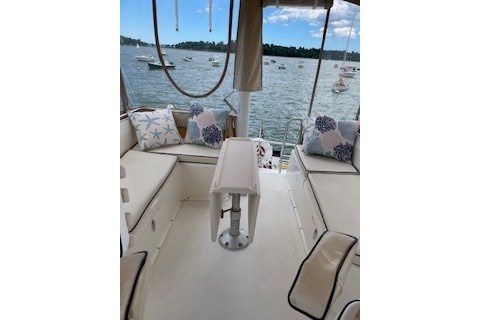

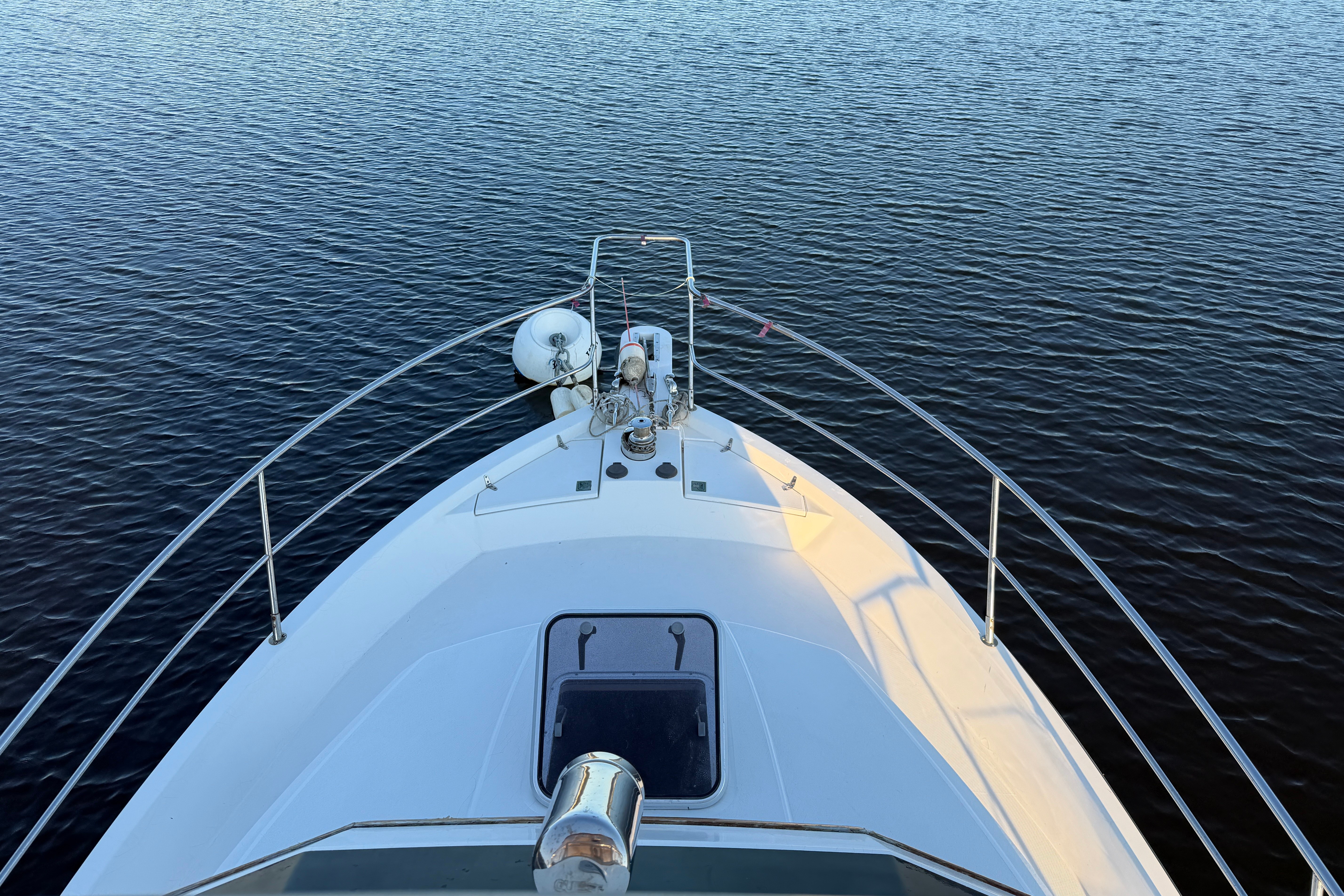

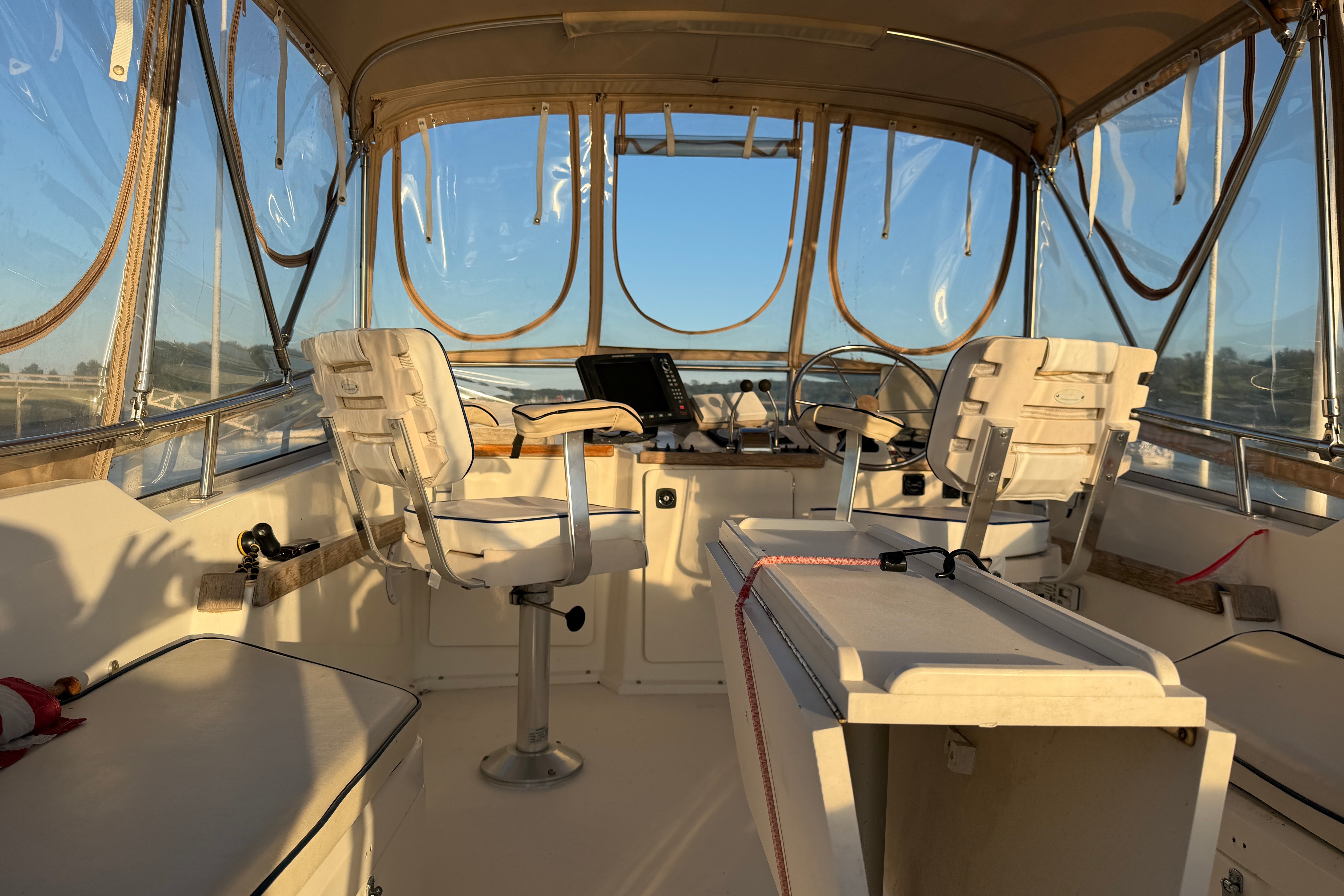

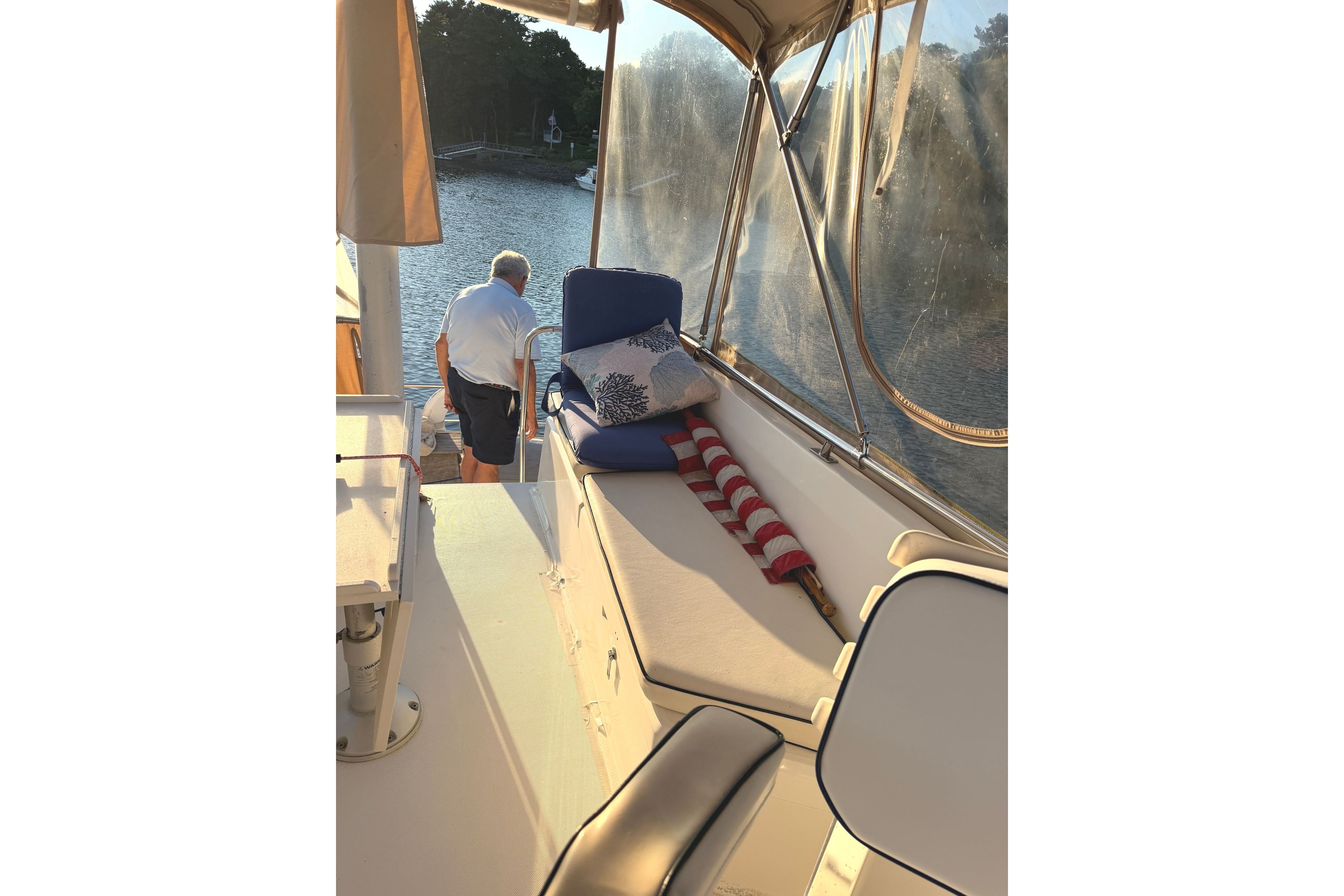

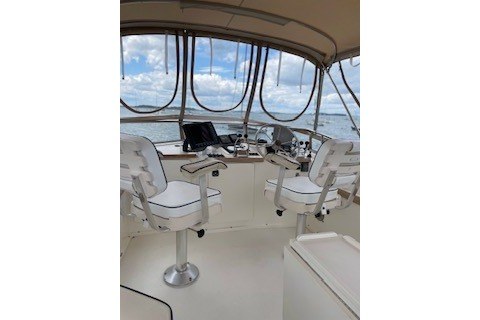

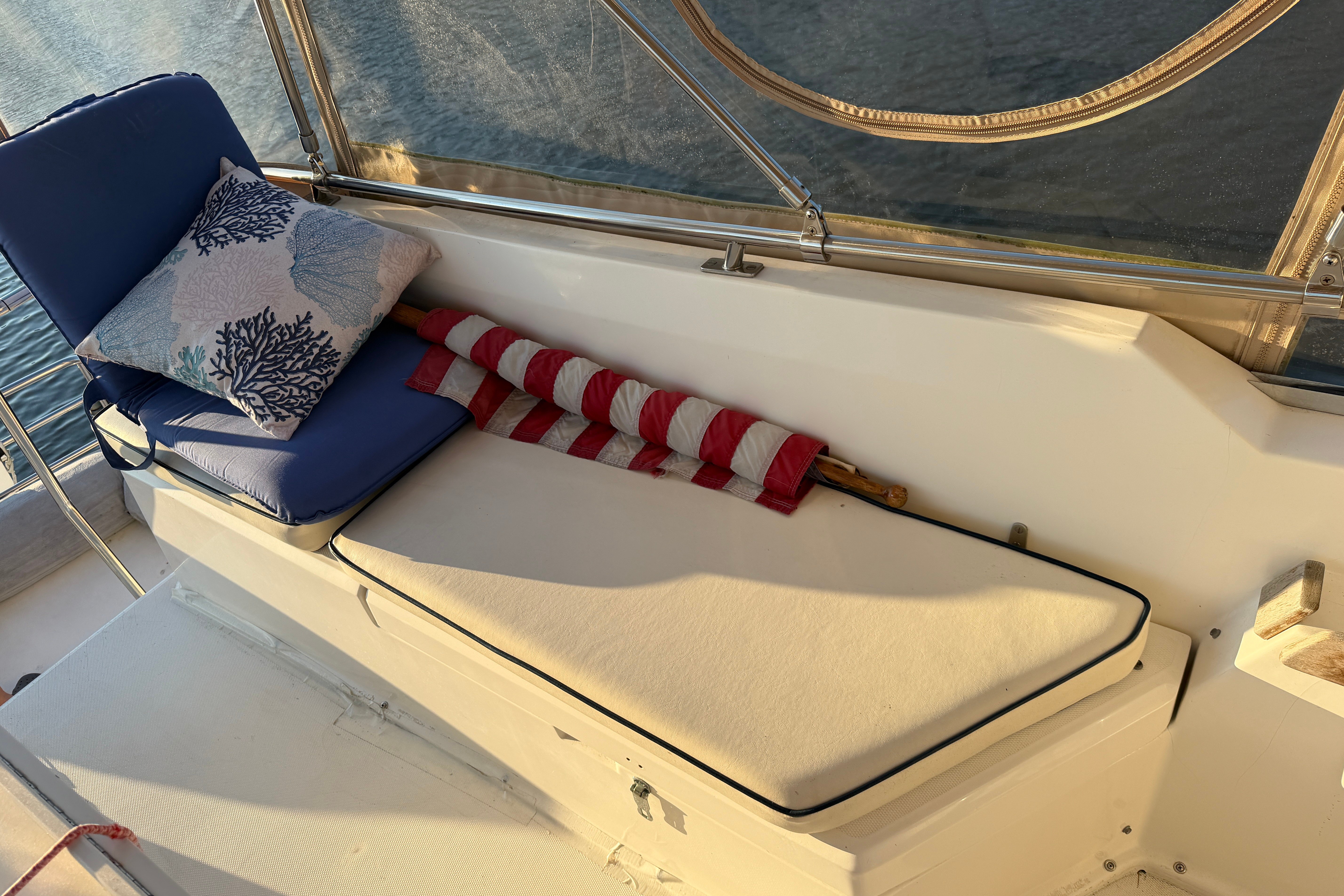

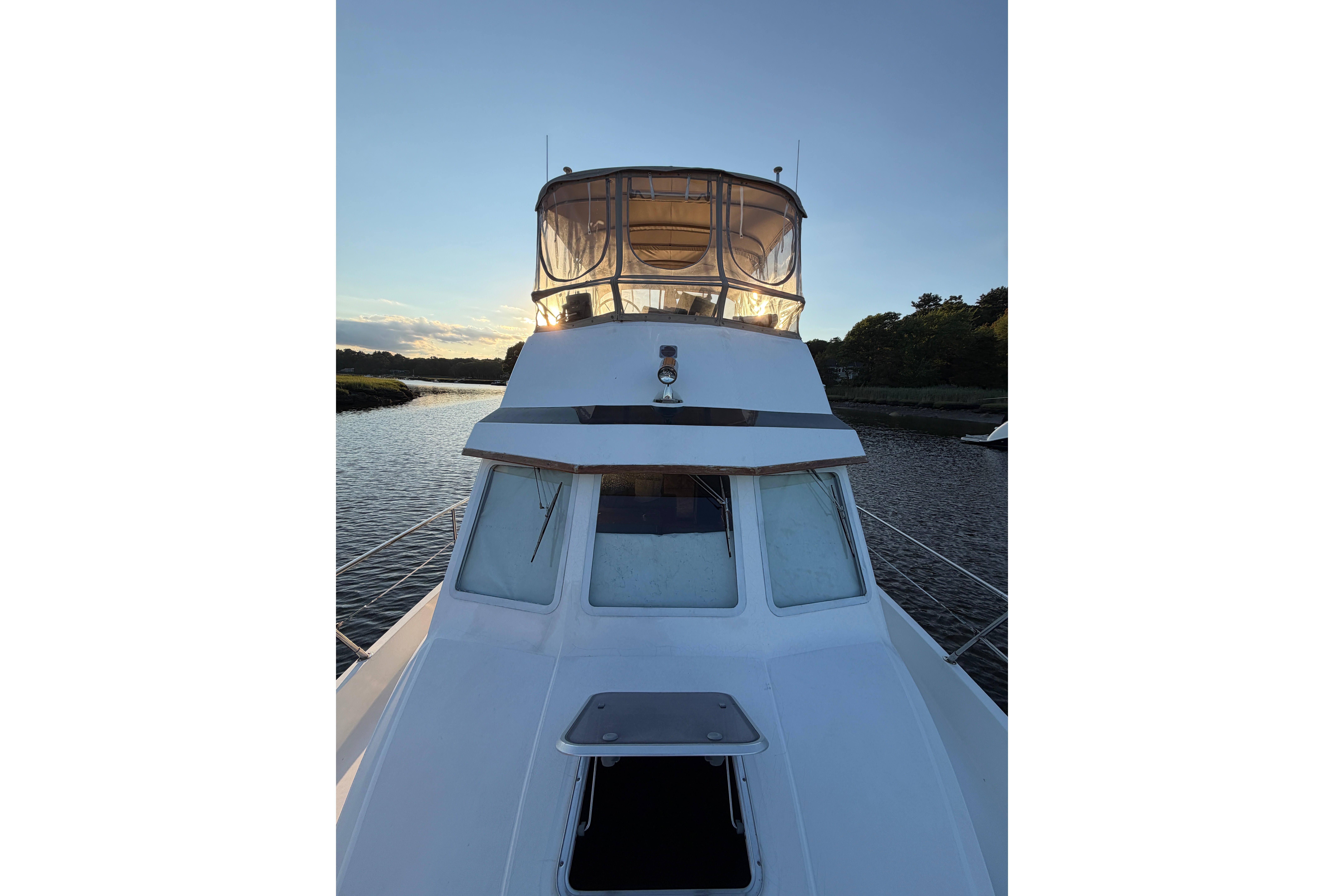

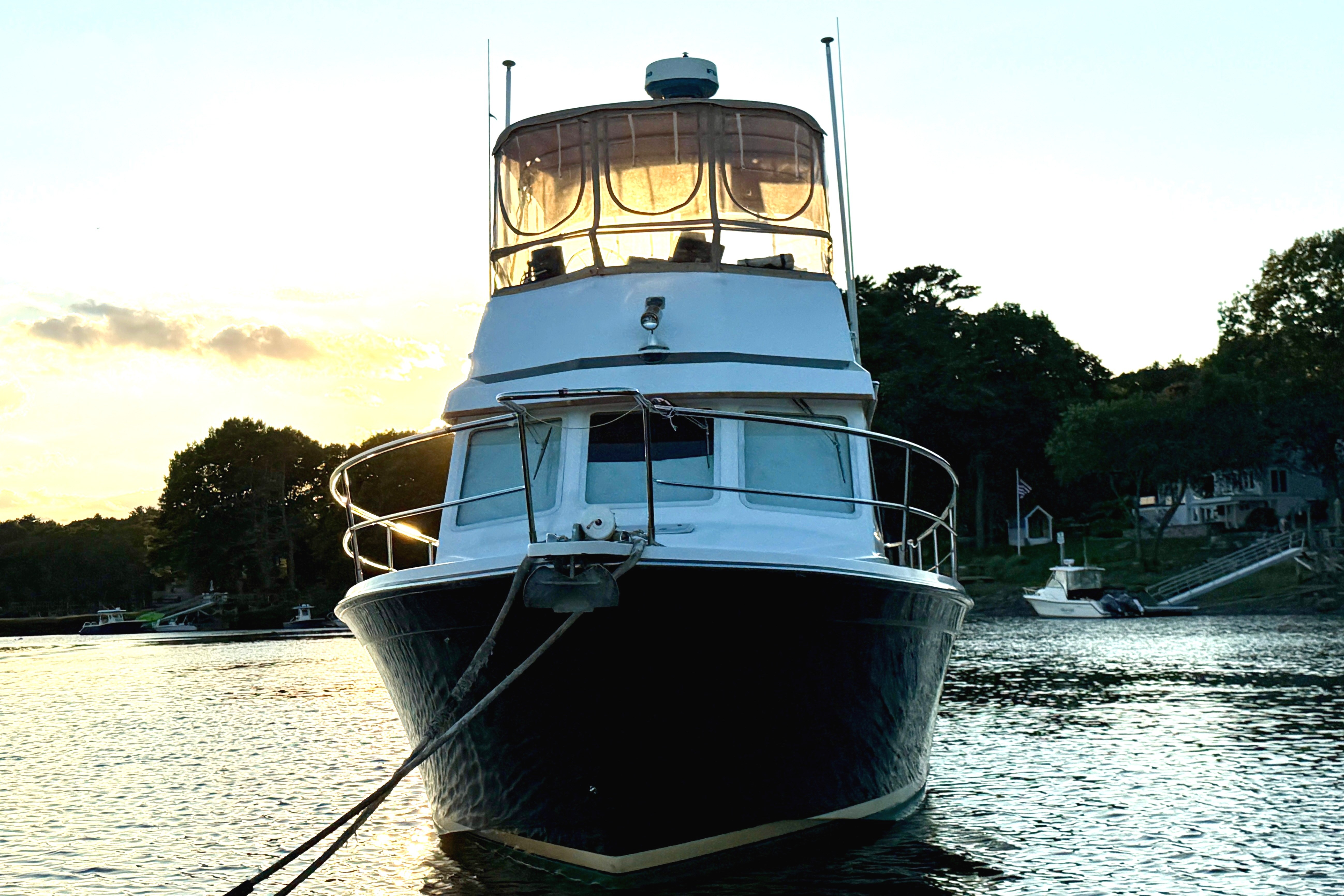

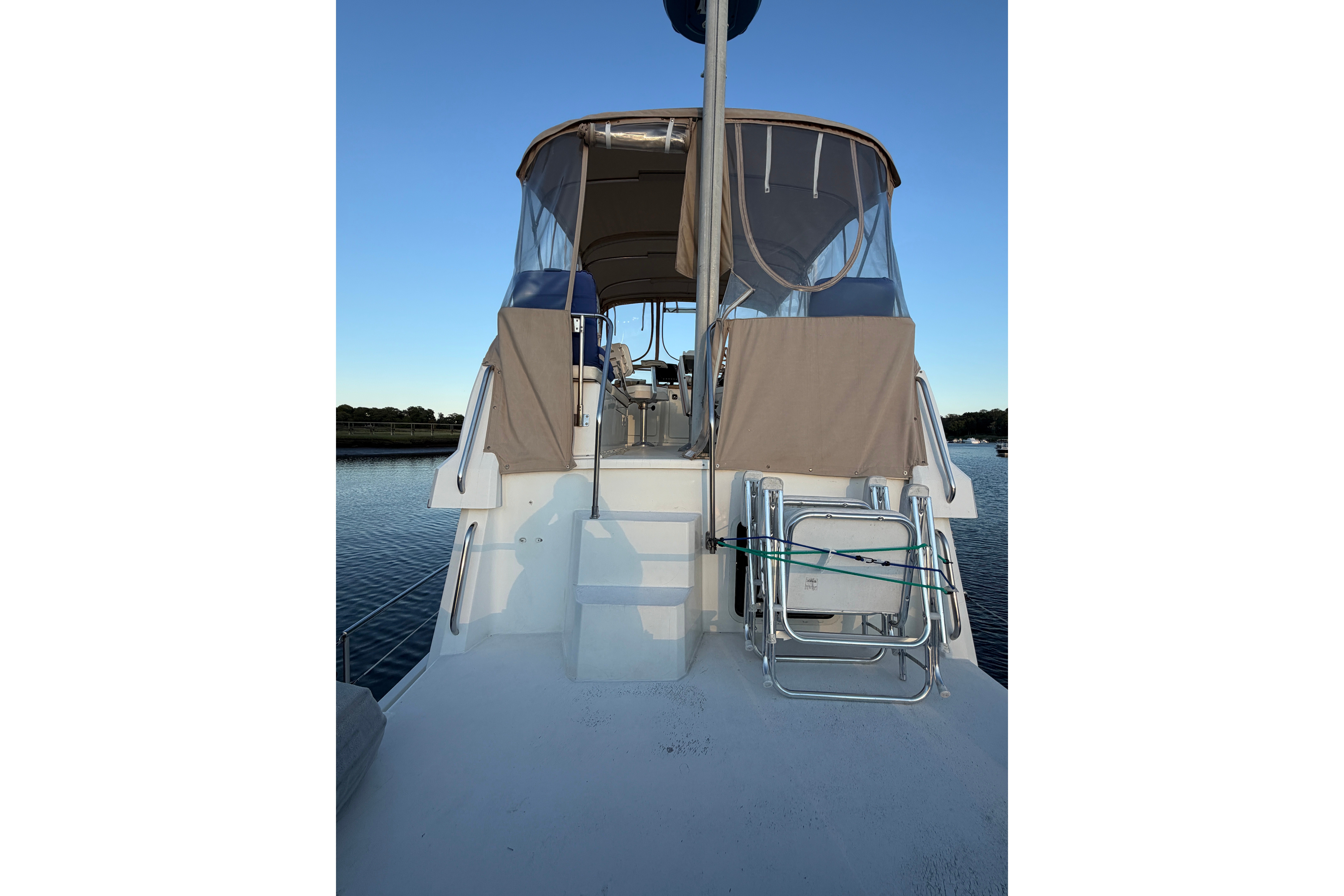

The large flybridge provides excellent visibility and comfortable helm and bench seating. Stainless-steel railings surround the deck perimeter, aft cabin top and flybridge.

Additional exterior equipment includes:

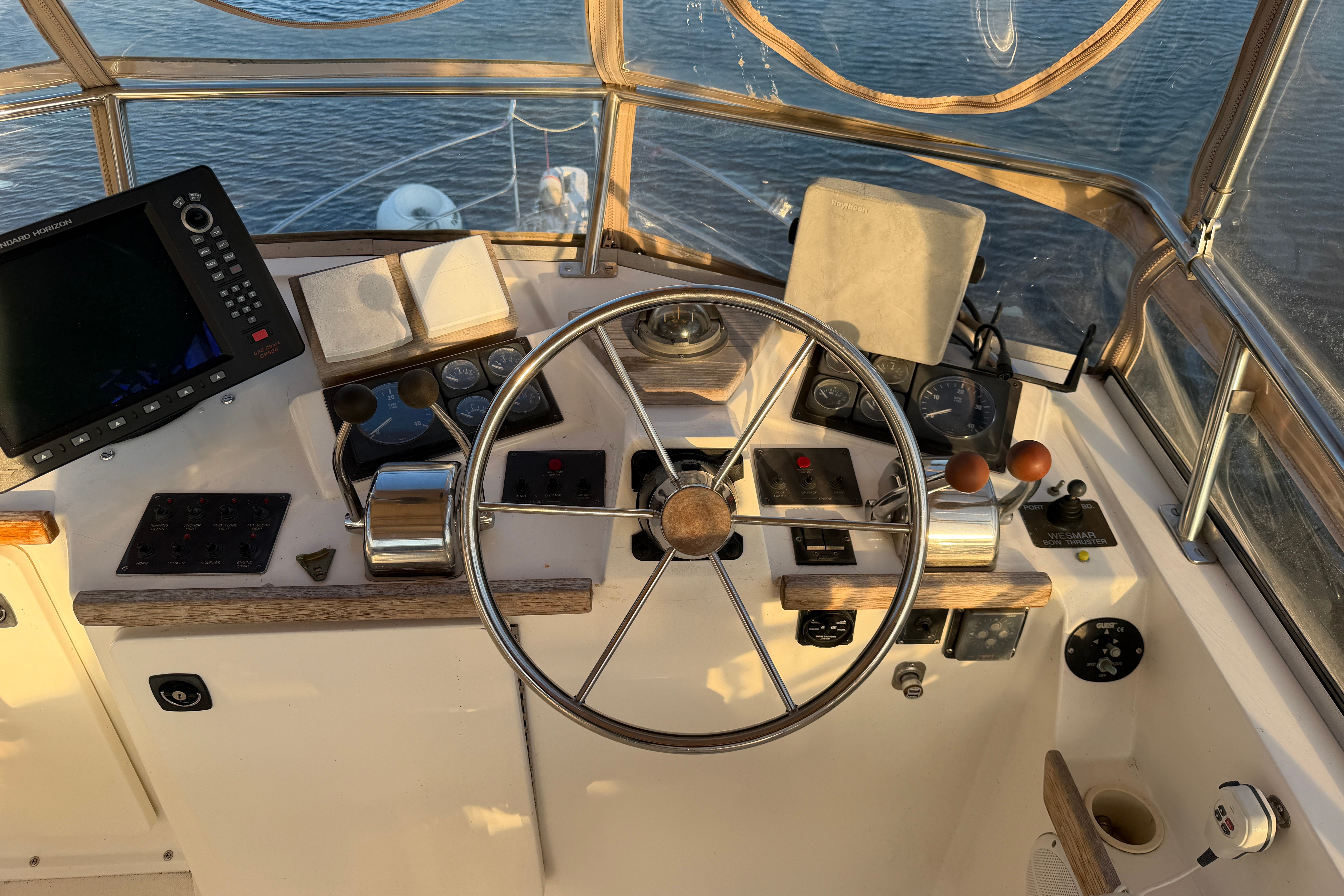

Flybridge helm station

Interior pilothouse helm

Sunbrella-style flybridge Bimini

Traditional hinged Sabreline mast

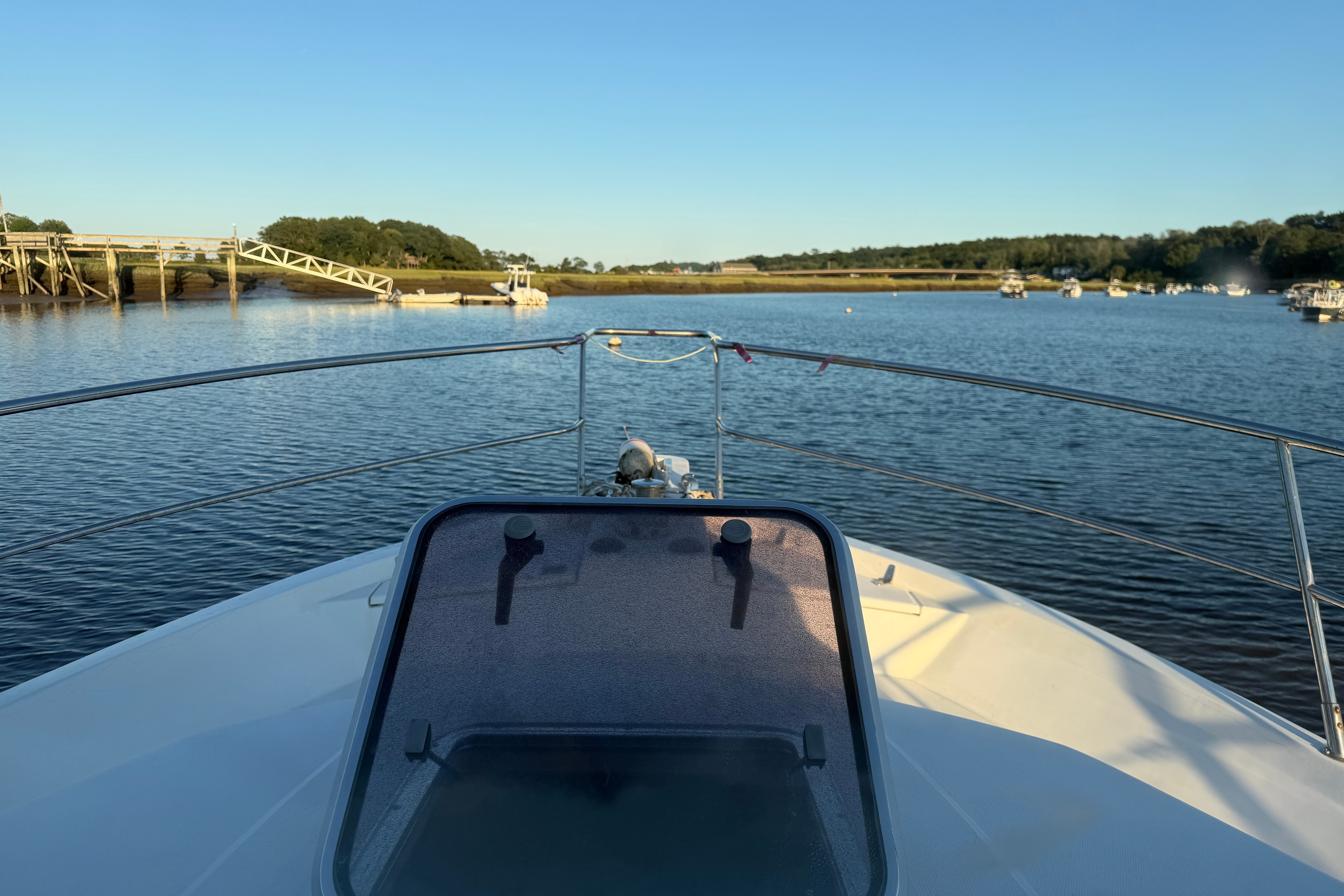

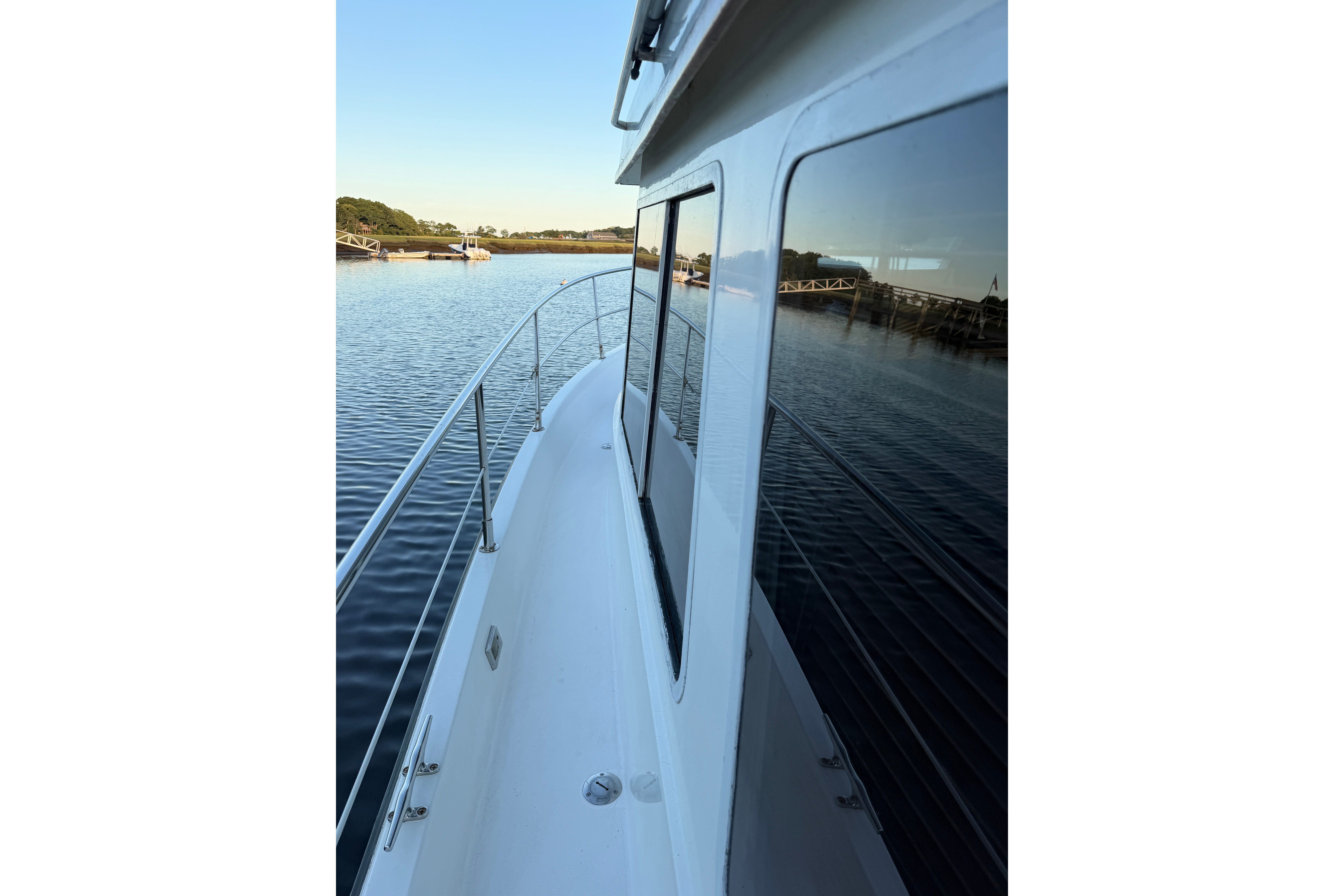

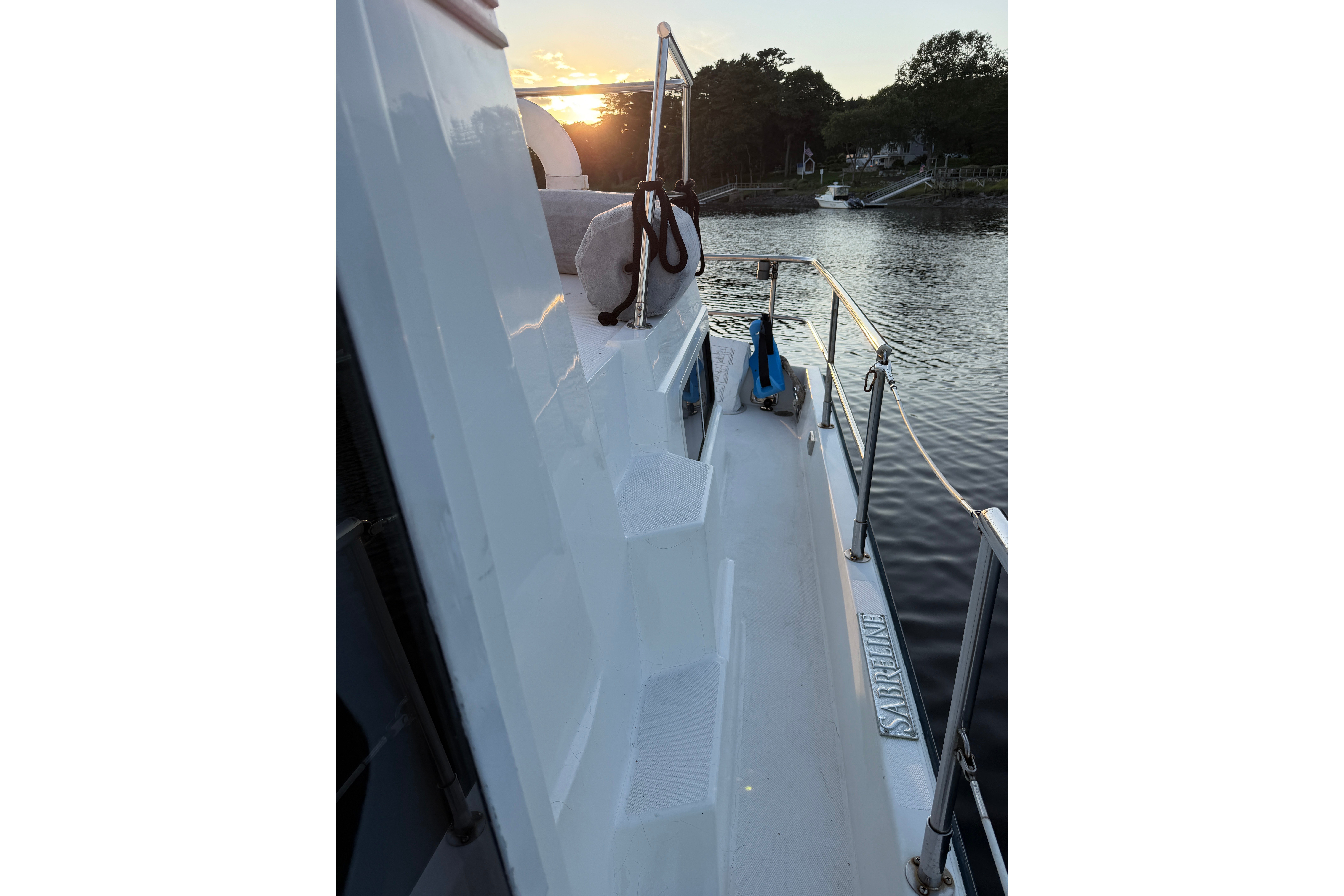

Stainless-steel bow and deck railings

Flybridge folding-leaf table

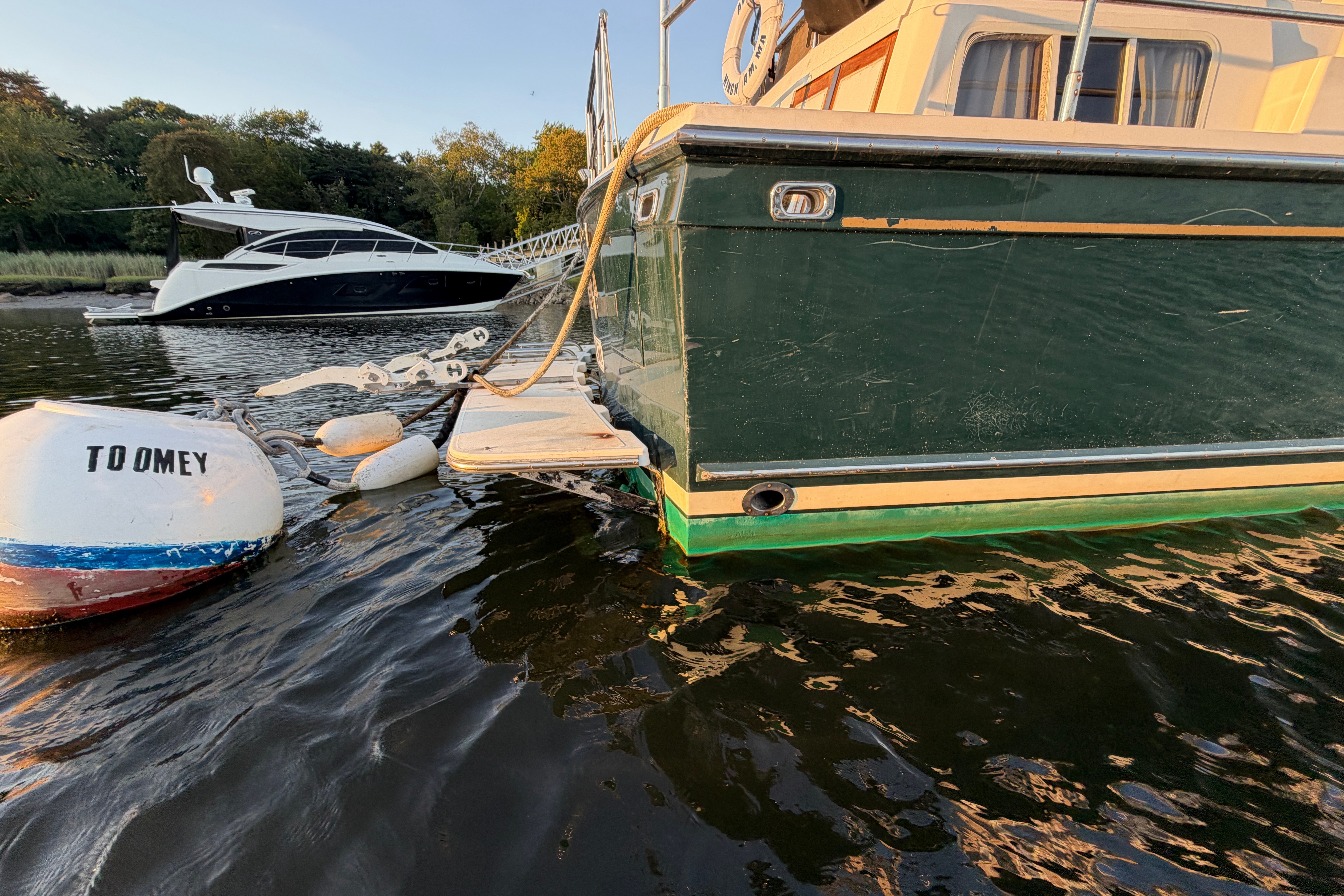

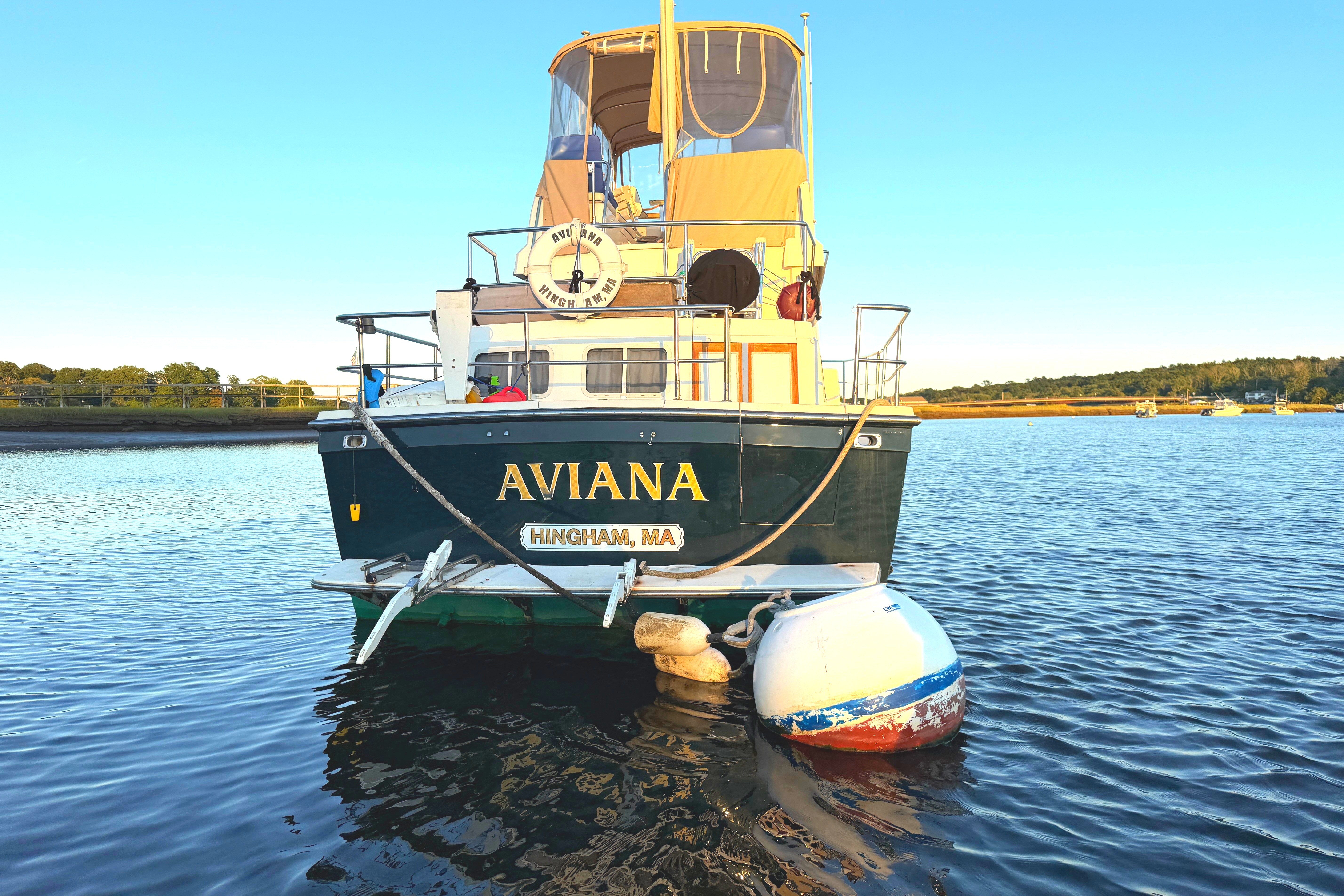

Fiberglass swim platform

Folding stainless-steel swim ladder

Starboard transom door

Stainless-steel dinghy davits

Dinghy cradle

Multiple exterior lockers

Three windshield wipers

Port and starboard sliding pilothouse doors

Ground Tackle & Safety Equipment

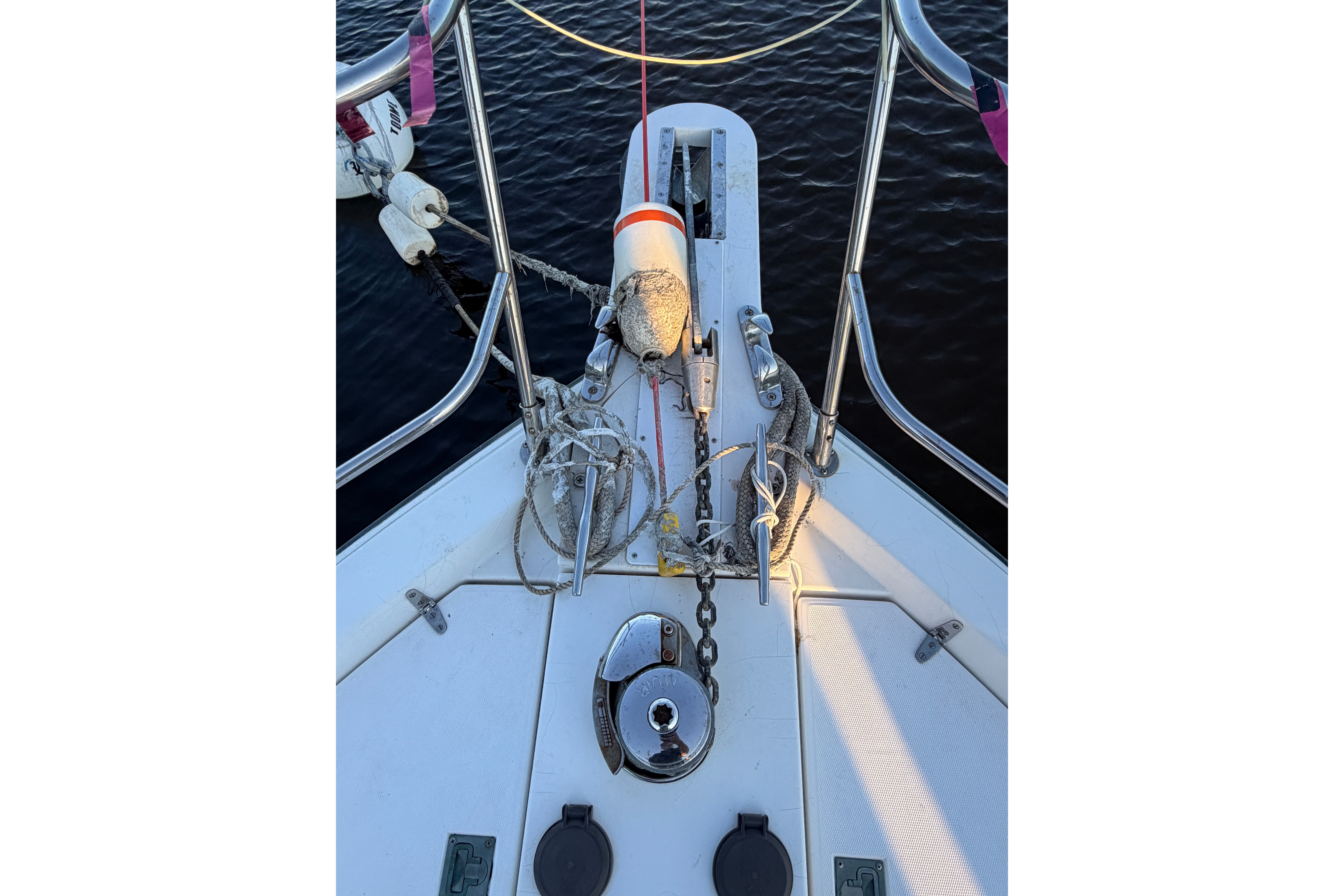

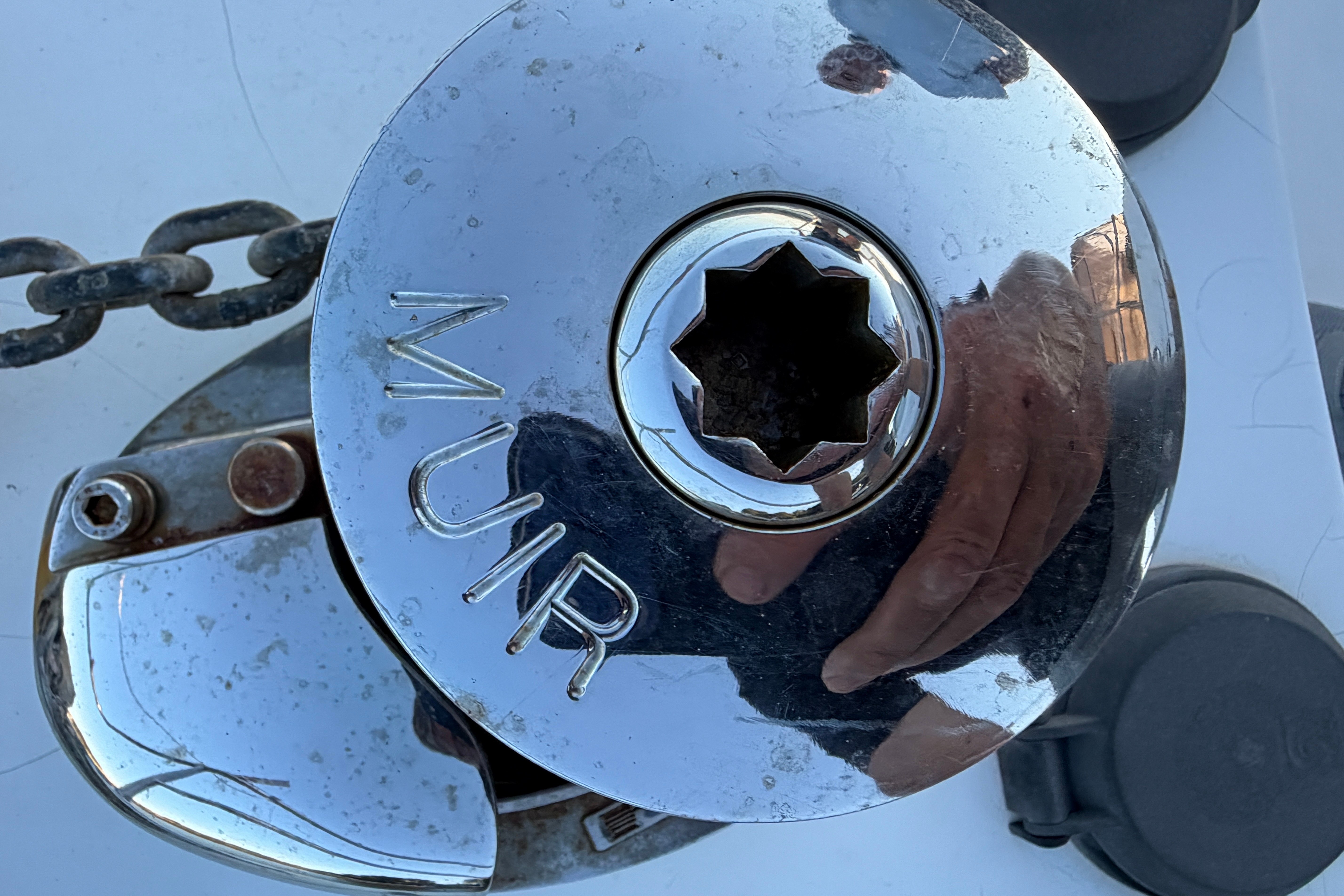

The bow is equipped with a Muir 12V electric windlass, operable from both the helm and bow controls. Ground tackle includes a galvanized plow anchor on the bow roller, secondary Danforth anchor and chain/nylon rode.

Additional equipment documented aboard includes a Lifesling MOB rescue system, ACR remote searchlight, first-aid kit, CO/smoke detector, two Rule 2000 automatic bilge pumps, navigation lights, electric air horn and handheld air horn.

A Proven Sabre Cruising Platform

The Sabreline 36 Aft Cabin remains an appealing choice for owners looking for traditional New England styling, diesel reliability and genuine cruising accommodations without moving into a substantially larger vessel.

With twin 300 HP Caterpillar diesels, bow thruster, 8kW Westerbeke generator, dual helm stations, two private staterooms, two heads, reverse-cycle heat/AC, 300 gallons of fuel and 225 gallons of freshwater, Aviana offers the equipment and layout needed for comfortable coastal cruising or extended time aboard.

Shown by appointment.
