A 27-foot center console fishing machine with a one-level deck, three-piece fisherman-friendly design, and a deep-V hull built for serious offshore conditions.

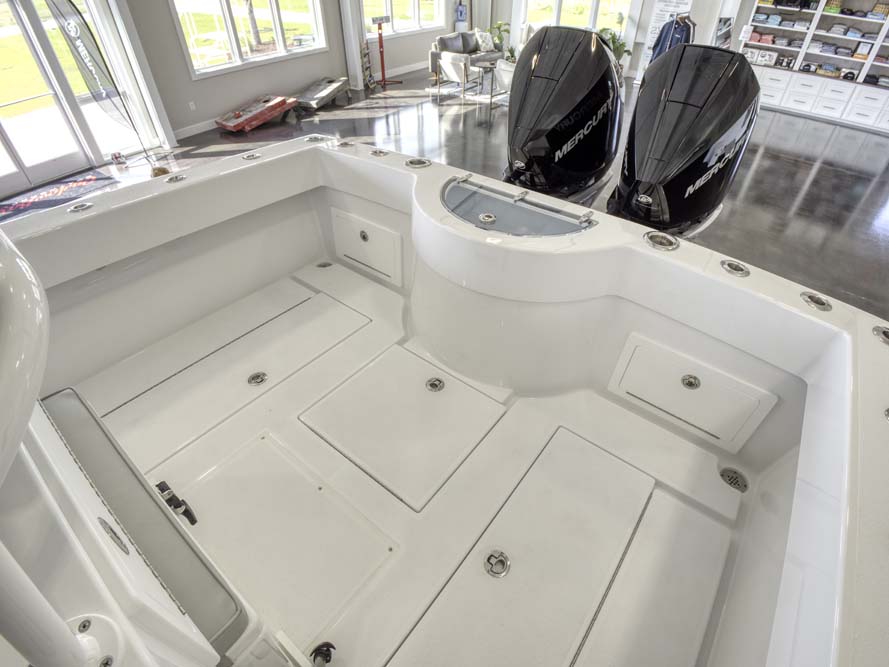

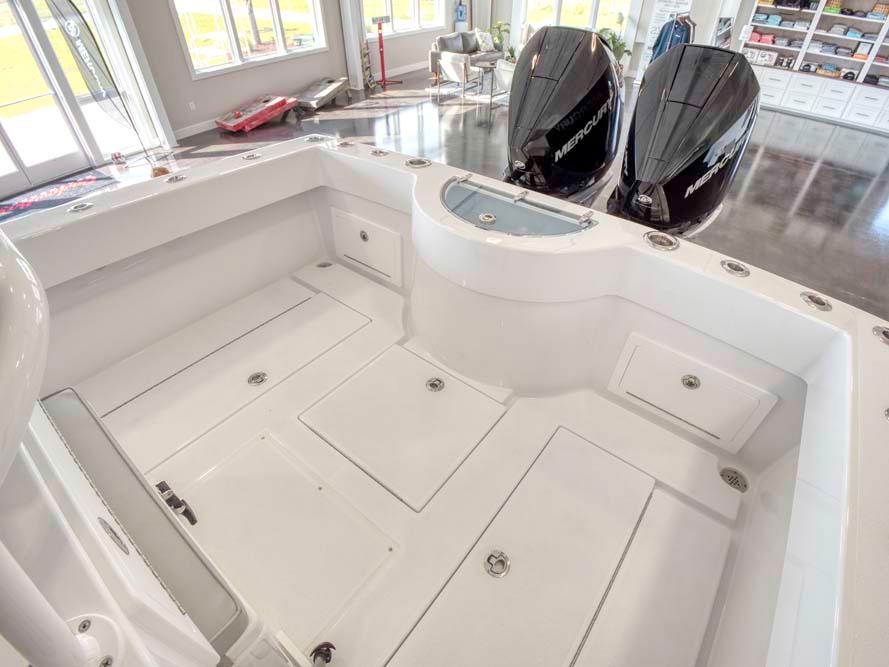

The Onslow Bay 27 Offshore Edition is a fishing machine capable of satisfying the needs of any offshore fisherman. Centerline length over deck is 26'11" with a huge 9'5" beam. Every part of this boat is designed with the avid fisherman in mind — a one-level deck, three-piece fisherman-friendly design, and large insulated fish boxes throughout.
The 27 comes standard with a rear 30-gallon livewell, available with an optional leaning post / 45-gallon livewell combo. All livewells have a Carolina blue interior and clear plexiglass lid to reduce stress on live bait. The bow has lots of flare and a 5-degree reverse chine for a dry, stable ride. The deadrise at the transom is 24 degrees with a 49.5-degree entry — an unbelievable ride in any sea conditions.
Standard features that most boat companies treat as options — Accon Marine pop-up hardware, custom-designed flush-mount electronics cabinet, T-top with electronics box, and more. The 27 can also be customized with forward seating (XS model) and a portable head in the console for family-friendly days when fishing is not on the agenda.
Gallery

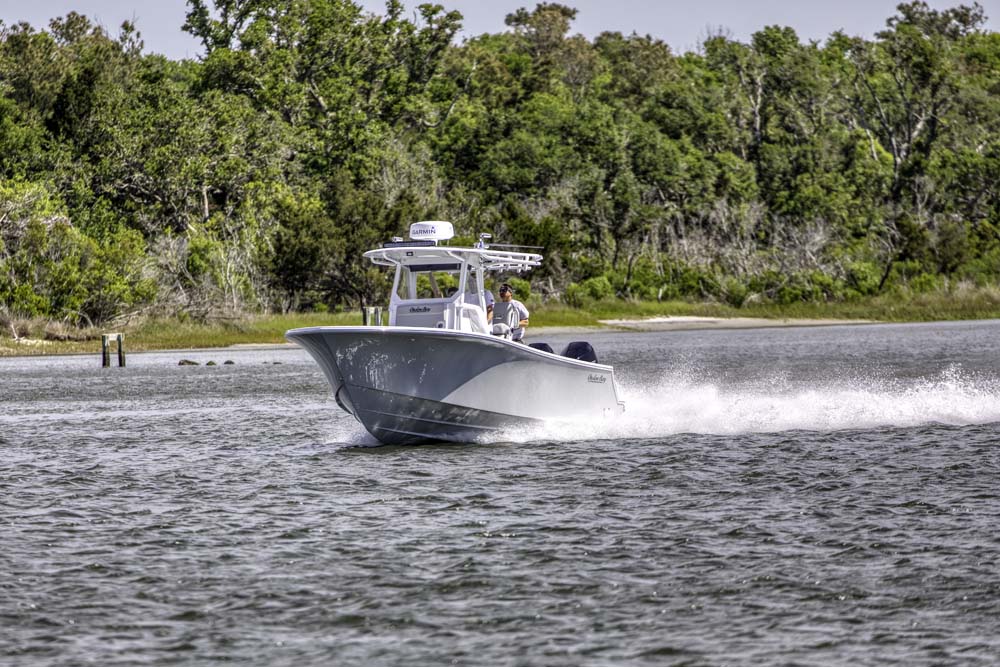

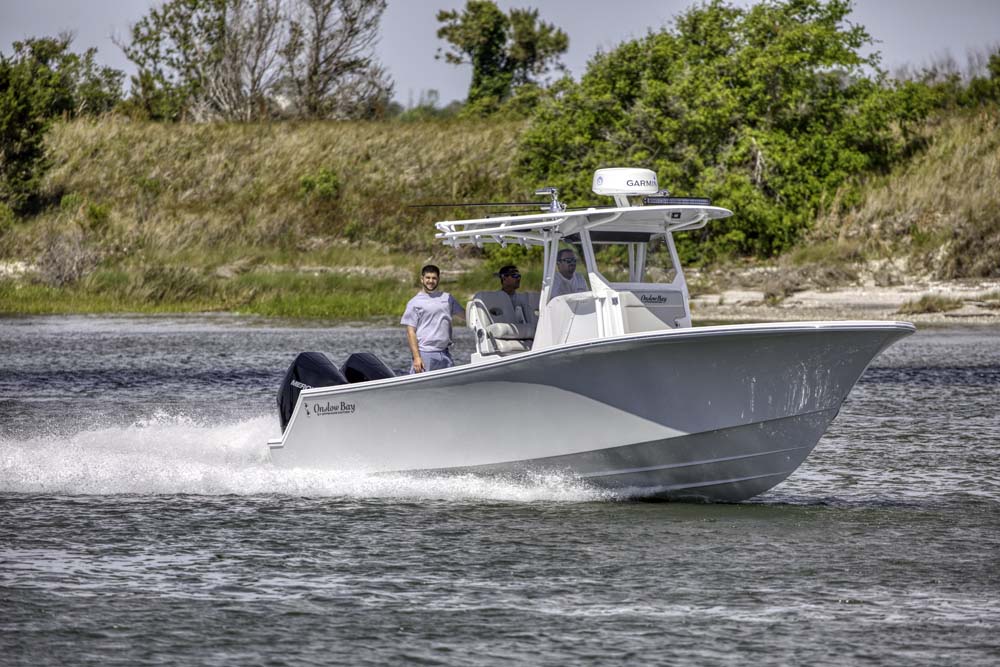

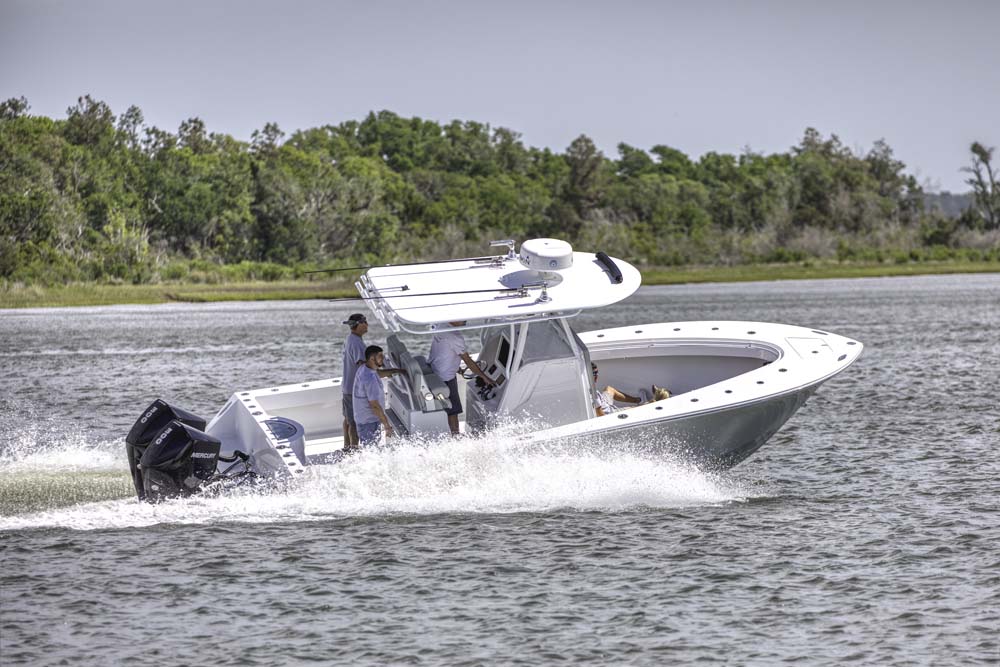

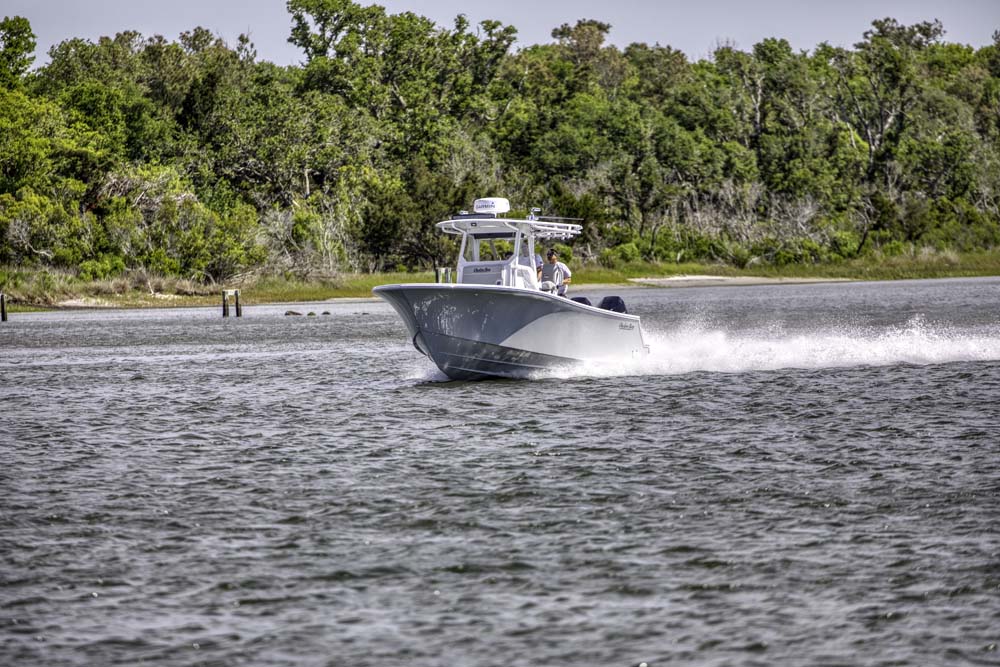

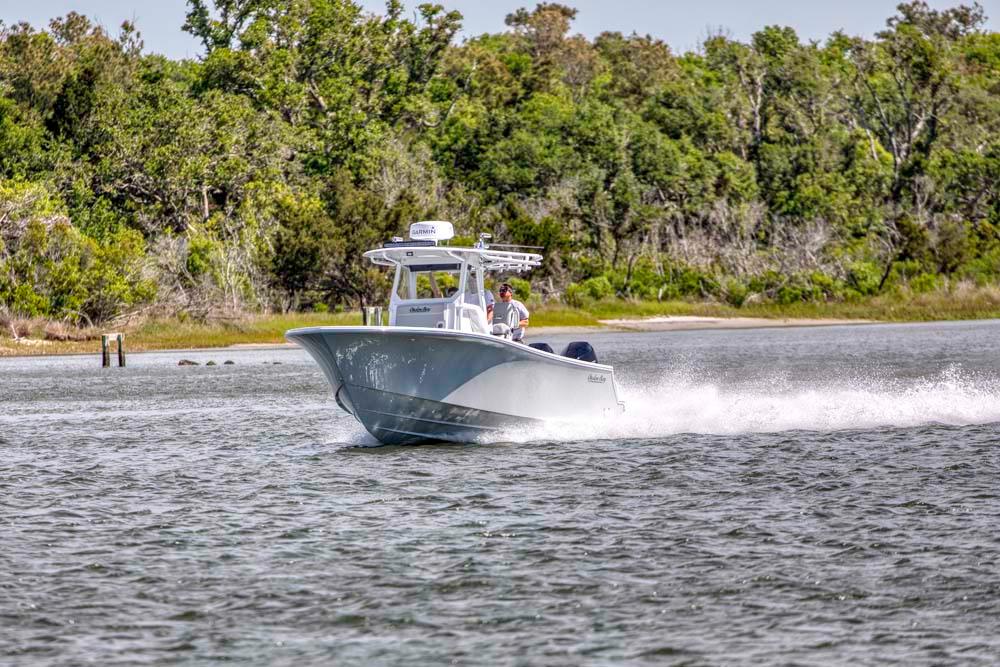

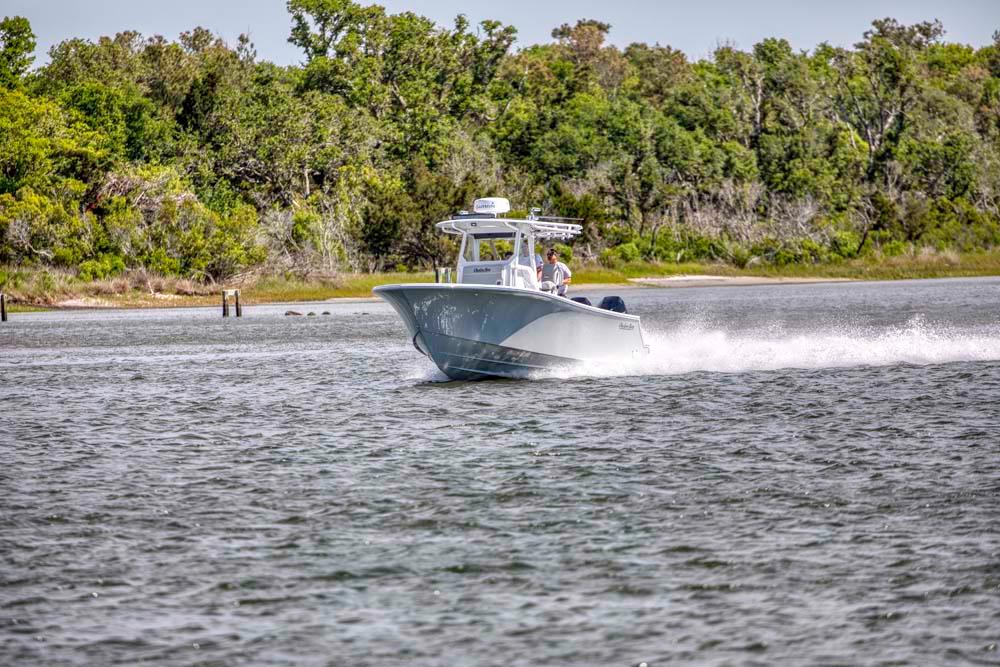

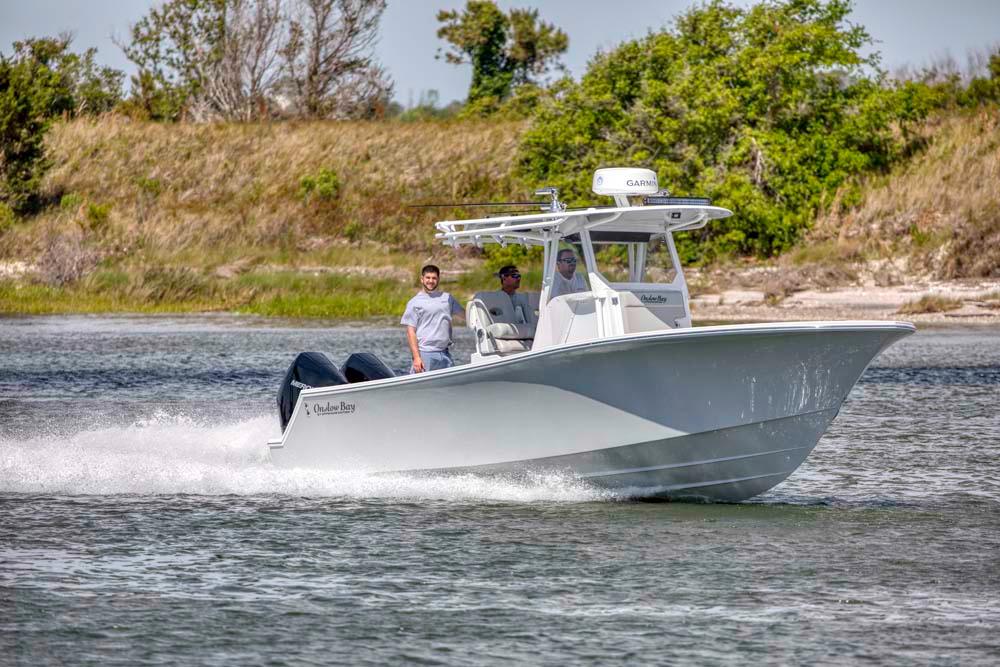

Stock photography of the 27 Offshore from Onslow Bay Boatworks.

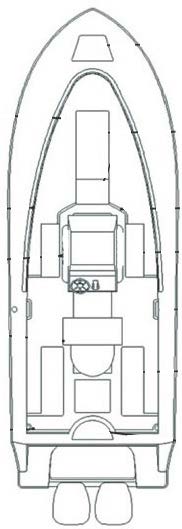

Layout
Rod-holder layout — 27 Offshore Edition
Standard Features
Built into every 27 Offshore from the factory floor in Holly Ridge, NC.
- Deep-V hull with 49.5° entry and 24° transom deadrise
- 5° reverse chine and large flare for a dry ride
- Integrated engine bracket and full-length running surface
- All-foam core construction (no wood, no rot)
- Plexus structural bonding (not polyester putty)
- 100% vinyl ester resin infused laminate
- All areas except bilge and fish boxes are foam-filled
- 212 gal foamed-and-fiberglassed fuel tank, corrosion resistant
- Lenco 12×18 stainless steel trim tabs with auto retract

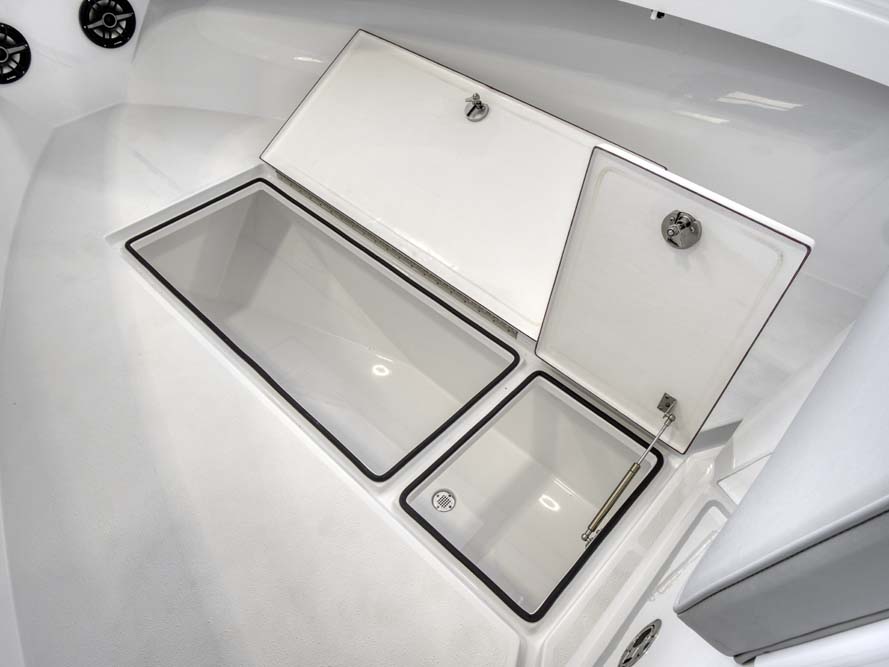

- Insulated 500 qt forward fish box with split lid (70"×25"×18")
- (2) insulated 140 qt amidship fish boxes
- (2) insulated 230 qt cockpit fish boxes

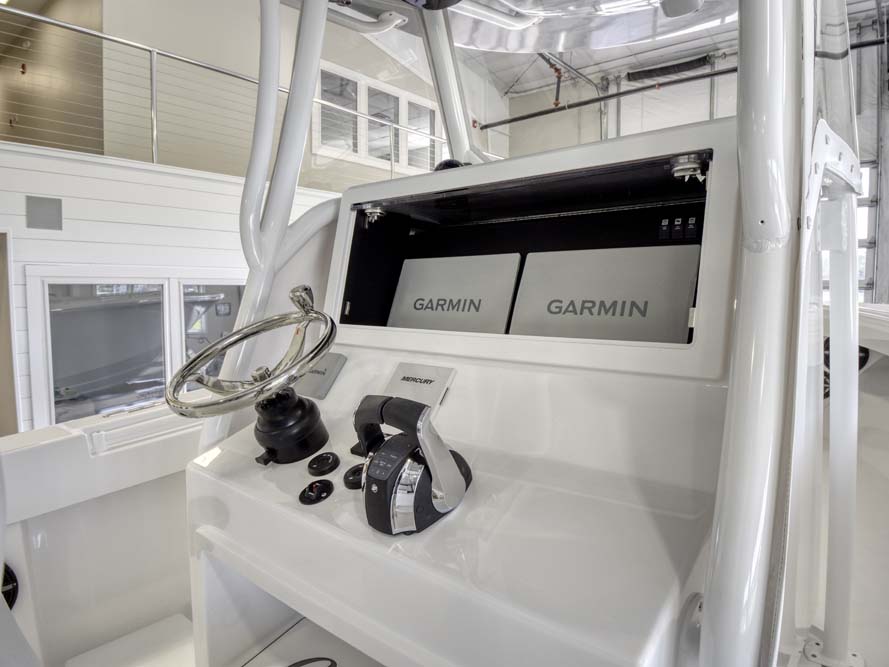

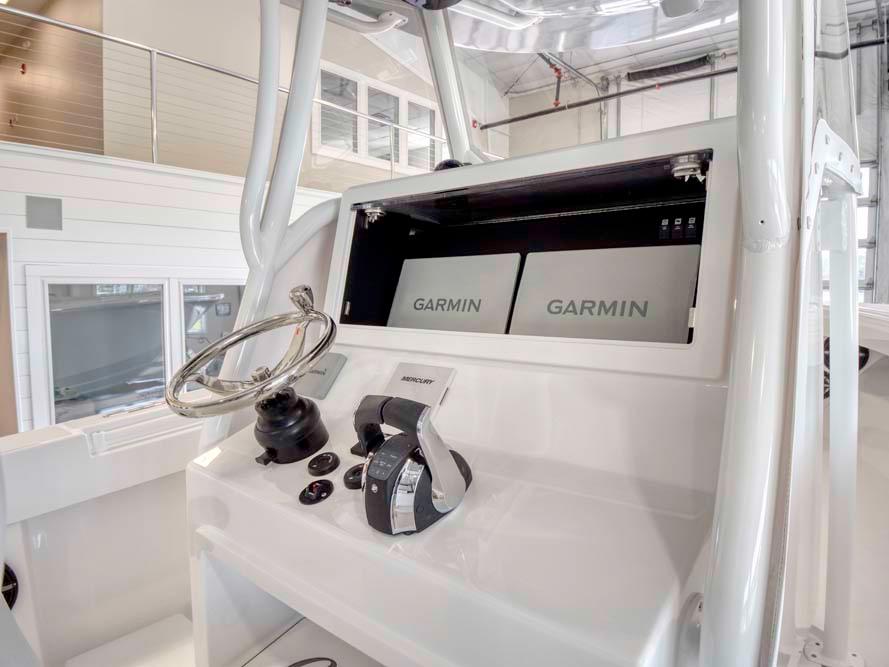

- Front-entry fiberglass console with toe kick and electronics area
- (3) 31-series batteries in console
- Mercury hydraulic power steering
- 13.5" Gemlux steering wheel with speed knob
- Dual fuel fills
- Ritchie flush-mount compass on dash
- Duradek console pad with two flush phone chargers
- Starboard flush-mount electronics cabinet with hideaway door
- (2) Rule 1500 GPH bilge pumps with float switches
- Accon Marine SS pop-up bow light + (6) 8" pop-up cleats
- (4) Gemlux gunnel-mount stainless steel rod holders
- Stainless steel piano hinges with Gemlux compression latches
- King Starboard doors back-screwed for clean appearance
- Self-bailing deck with stainless drains and check valves
- Aluminum leaning post with backrest and rocket launcher

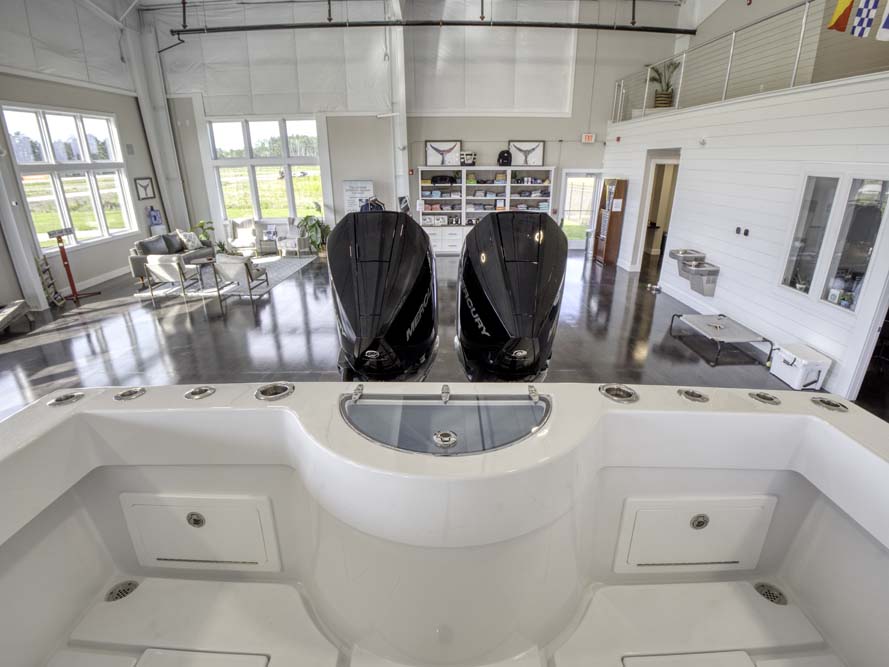

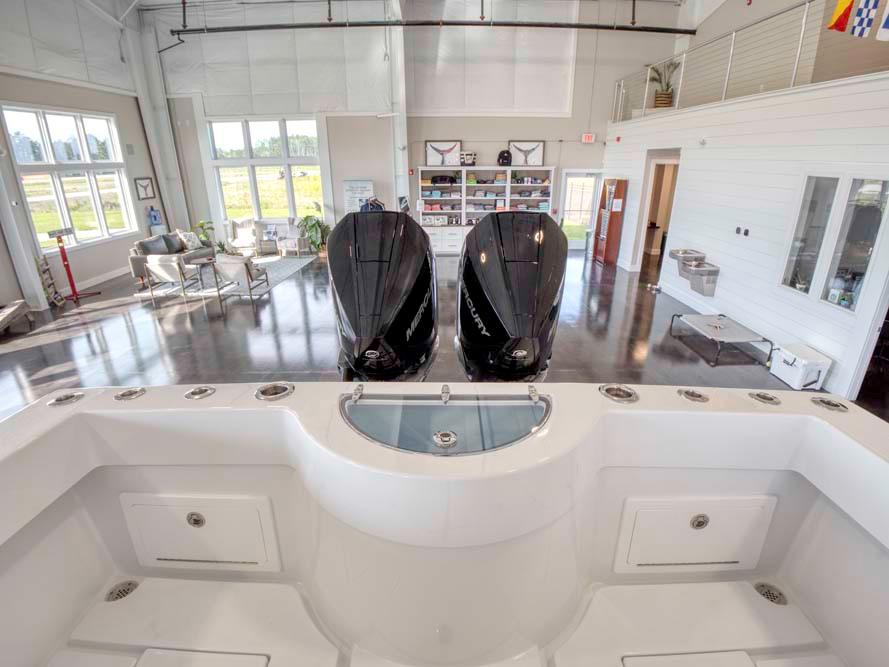

- 30 gal half-round transom livewell with Carolina blue interior
- Recessed aluminum bow rail
- Under-gunnel 4-color LED lighting
- Console and bilge LED lighting
- Under-gunnel brush/gaff holders and downrigger power posts
- Saltwater washdown
- Anchor locker with bow anchor holder
- 3-piece hull, cap, and liner fisherman-friendly design

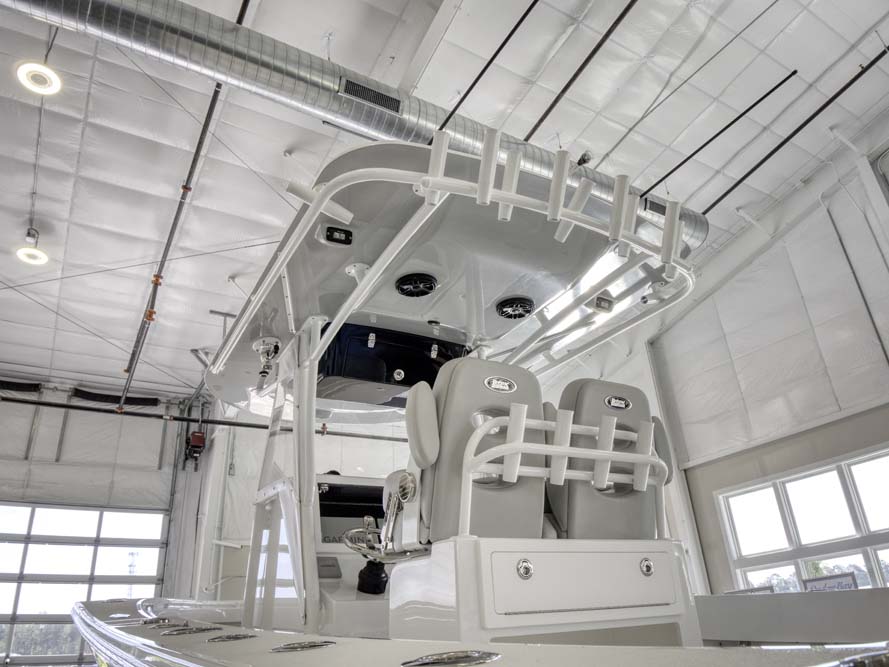

- T-top with canvas frame, oversized tubing, electronics box, LED spreader lights, outrigger plates, and curtains
Available Options
Configure your 27 Offshore to spec. Talk to us about pricing and lead time.
Appearance & Utility

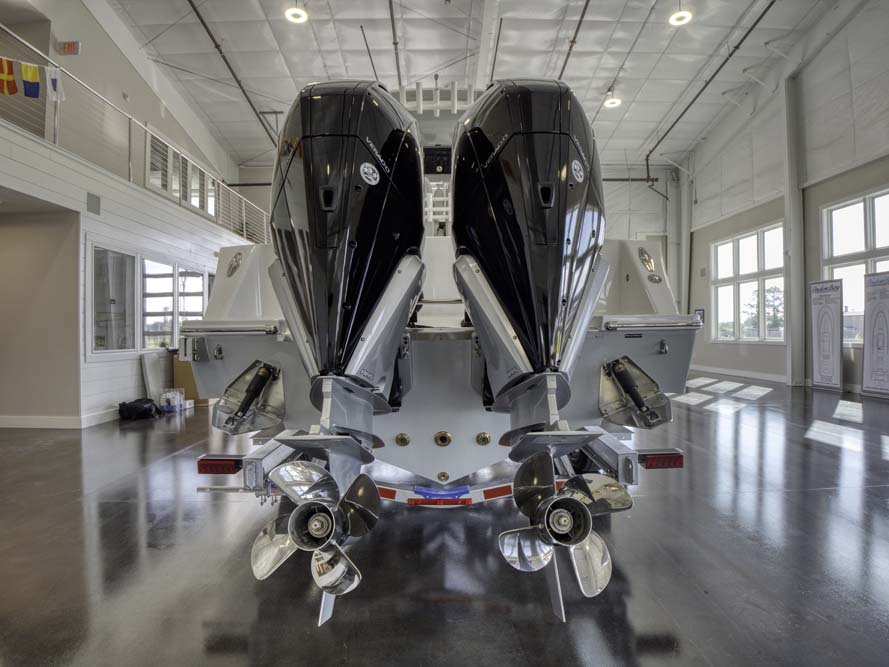

- White Verados
- Mercury joystick
- Seakeeper 1
- Custom hull color
- 3-bank battery charger
- Freshwater washdown
- Edson steering wheel upgrade
- Underwater lights
- LED flush map light over driver (hardtop)
- Transom door
- Tackle center

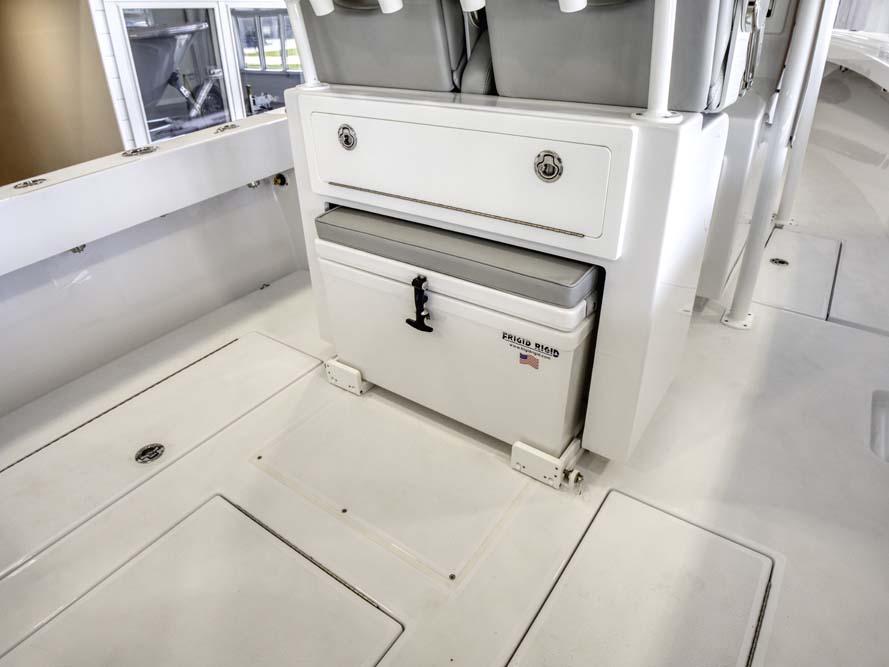

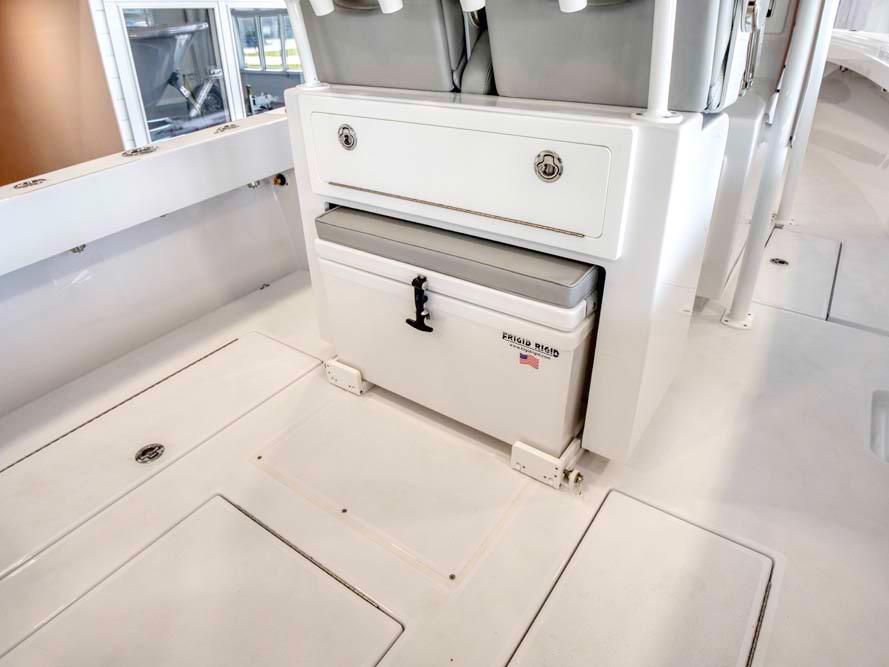

- Tackle center with slide-out Frigid Rigid cooler and cushion
- Large tackle center with fiberglass back
- Large tackle center with fiberglass back and slide-out Frigid Rigid cooler
- Plumbed-in head with holding tank
Seating
- Forward seating (molded-in or removable)
- 45-gallon leaning post / livewell installed
- Llebroc Mini Billfish helm chairs
- Diamond stitching on cushions
- Flip-down seats in cockpit
- Flip-down seat on front of console
- Bolsters
T-Top & Console
- Fiberglass hardtop
- Glass windshield
- T-top rear legs to leaning post
- Color under hardtop
- T-top wings
- Rod racks on side of console (4 each side)
- Upper station with controls (seat and top optional)
- Upper lookout ring with bolster (no controls)
- Powder coating
Fishing
- Extra rod holders on rear legs (each)
- Second rod rack with 4 rod holders
- Gemlux rod holders
- Gemlux cup holder / rod holder combo
- Gemlux swivel rod holders / backing plates
- Aft macerated fish boxes
- Gemlux fish box plugs
- Gemlux outrigger bases installed
- Taco outrigger bases installed
- Outrigger poles
Trailer
- Ameratrail tandem axle trailer with brakes, SS calipers, Shark Hide
- C-channel
- Mag wheel upgrade (including spare)
- Electric over hydraulic brakes
- Trailer bow ladder
